ACFM-7103-LR1 Datasheet

ACFM-7103

Datasheet specifications

Datasheet's name ACFM-7103
File size 1859.523 KB
File type pdf
Number of pages 20

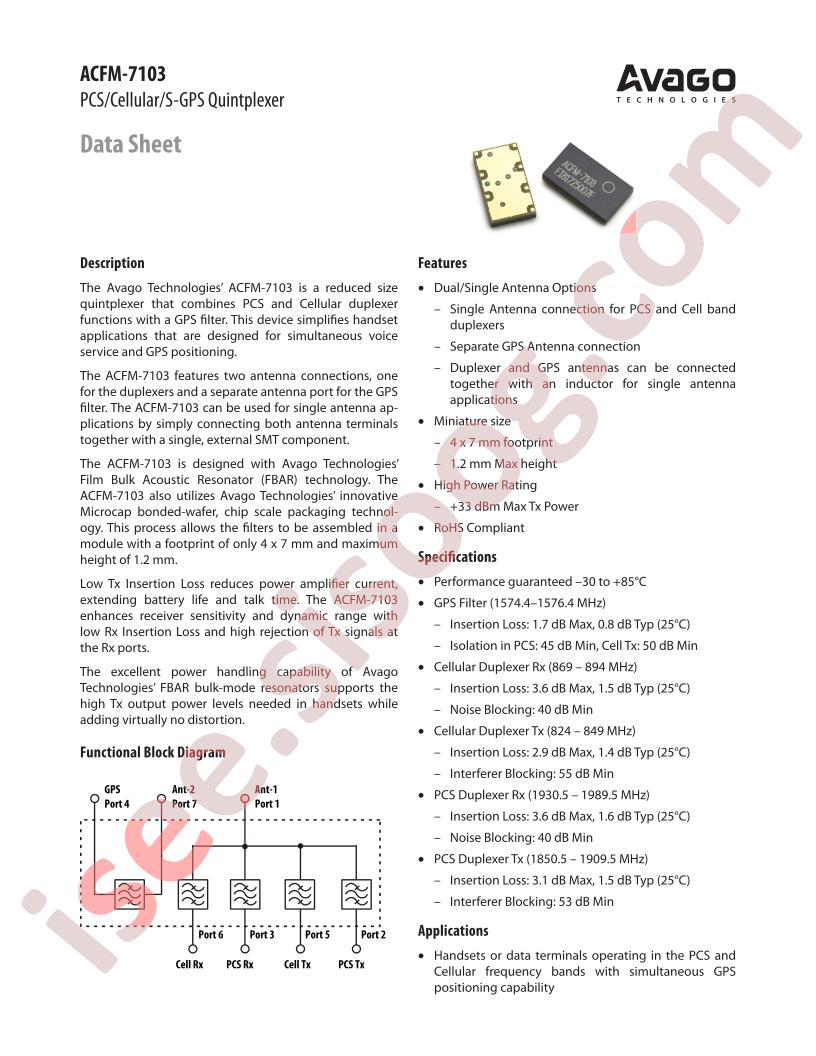

Download Datasheet ACFM-7103

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Broadcom Limited
  • Series: -
  • Packaging: Bulk
  • Part Status: Obsolete
  • Type: Quintplexer
  • Frequency Bands (Low / High): 869MHz ~ 894MHz / 1.93GHz ~ 1.99GHz
  • Low Band Attenuation (min / max dB): 37.00dB / 58.00dB
  • High Band Attenuation (min / max dB): 50.00dB / 61.00dB
  • Return Loss (Low Band / High Band): 17.0dB / 15.0dB
  • Mounting Type: Surface Mount
  • Package / Case: Module
  • detail: RF Diplexor Quintplexer 869MHz ~ 894MHz / 1.93GHz ~ 1.99GHz Module
