- دیتاشیت FSL538APG
FSL538APG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | FSL538APG |
|---|---|
| حجم فایل | 84.142 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت FSL538APG |
دانلود دیتاشیت |
|---|
سایر مستندات

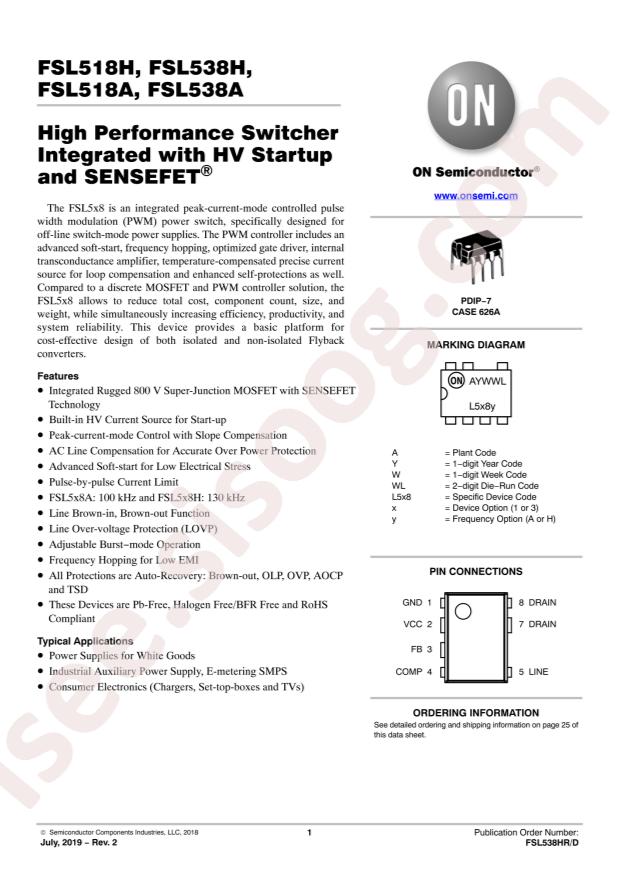

FSL518A/H, FSL538A/H 27 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Flyback
- Datasheet: onsemi FSL538APG
- Breakdown Voltage: 800V
- Switching Frequency: 100kHz
- Operating Temperature: -40°C~+125°C@(Tj)
- Package: PDIP-7
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Isolation: Either
- Internal Switch(s): Yes
- Voltage - Breakdown: 800V
- Voltage - Start Up: 16V
- Voltage - Supply (Vcc/Vdd): -
- Duty Cycle: -
- Frequency - Switching: 100kHz
- Power (Watts): 25W
- Fault Protection: Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage
- Control Features: EN, Soft Start
- Package / Case: 8-DIP (0.300", 7.62mm), 7 Leads
- Supplier Device Package: 7-PDIP
- Mounting Type: Through Hole
- Base Part Number: FSL53
- detail: Converter Offline Flyback Topology 100kHz 7-PDIP
