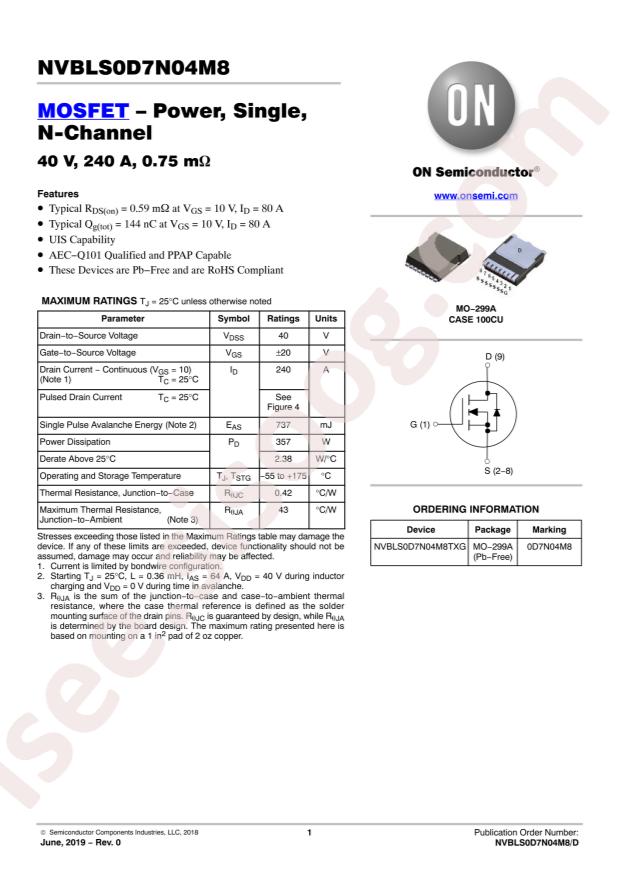

NVBLS0D7N04M8TXG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVBLS0D7N04M8TXG
|
|
حجم فایل
|
73.522
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVBLS0D7N04M8TXG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
357W
-
Total Gate Charge (Qg@Vgs):
144nC@0~10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
12nF@25V
-
Continuous Drain Current (Id):
240A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
440pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.59mΩ@10V,80A
-
Package:
MO-299A
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
240A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
0.75mOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
188nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
12000pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
357W (Tj)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-HPSOF
-
Package / Case:
8-PowerSFN
-
Base Part Number:
NVBLS0
-
detail:
N-Channel 40V 240A (Tc) 357W (Tj) Surface Mount 8-HPSOF
