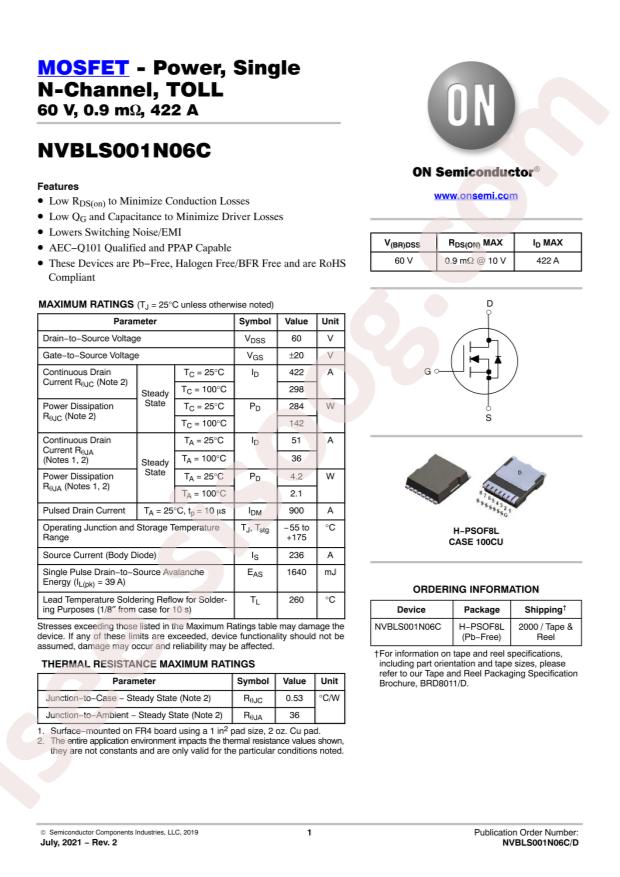

NVBLS001N06C دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVBLS001N06C
|
|
حجم فایل
|
90.074
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVBLS001N06C
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
284W
-
Total Gate Charge (Qg@Vgs):
143nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
11.575nF@30V
-
Continuous Drain Current (Id):
422A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.8V@562uA
-
Reverse Transfer Capacitance (Crss@Vds):
76pF@30V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.75mΩ@10V,80A
-
Package:
H-PSOF-8L
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
51A (Ta), 422A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
900µOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 562µA
-
Gate Charge (Qg) (Max) @ Vgs:
143nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
11575pF @ 30V
-
FET Feature:
-
-
Power Dissipation (Max):
4.2W (Ta), 284W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-HPSOF
-
Package / Case:
8-PowerSFN
-
Base Part Number:
NVBLS0
-
detail:
N-Channel 60V 51A (Ta), 422A (Tc) 4.2W (Ta), 284W (Tc) Surface Mount 8-HPSOF
