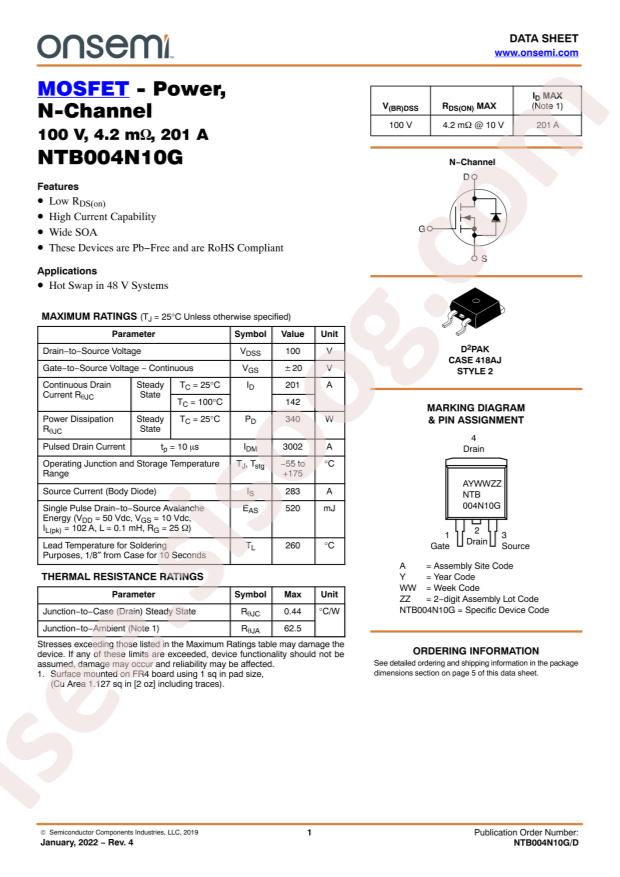

NTB004N10G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTB004N10G
|
|
حجم فایل
|
80.598
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTB004N10G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
340W
-
Total Gate Charge (Qg@Vgs):
175nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
11.9nF@50V
-
Continuous Drain Current (Id):
201A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.8V@500uA
-
Reverse Transfer Capacitance (Crss@Vds):
147pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.4mΩ@10V,100A
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
201A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
4.2mOhm @ 100A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 500µA
-
Gate Charge (Qg) (Max) @ Vgs:
175nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
11900pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
340W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-263 (D2Pak)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
detail:
N-Channel 100V 201A (Ta) 340W (Tc) Surface Mount TO-263 (D2Pak)
