دیتاشیت 74AC32MTCX
مشخصات دیتاشیت
| نام دیتاشیت | 74AC32, 74ACT32 |
|---|---|
| حجم فایل | 345.589 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت 74AC32, 74ACT32 |

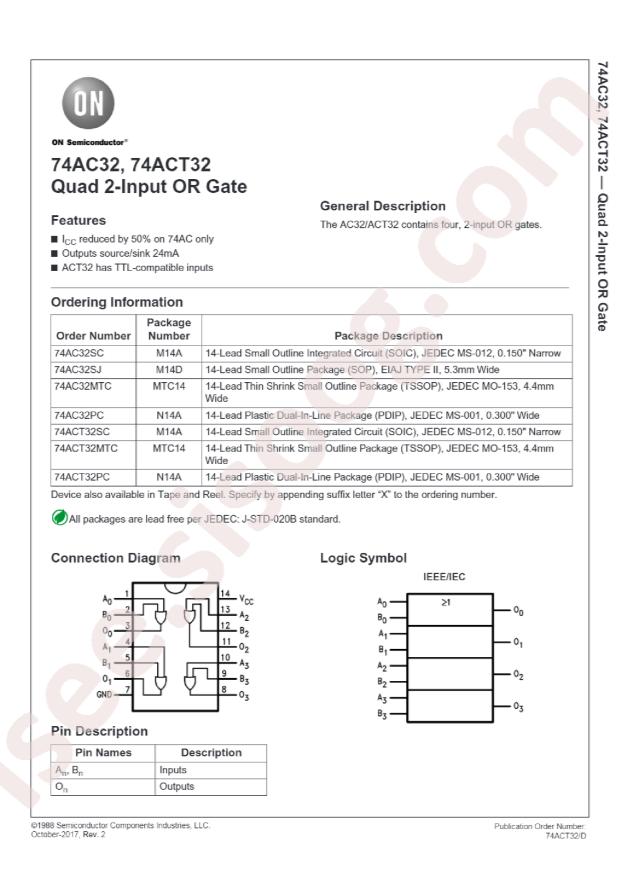

74AC32, 74ACT32 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74AC
- Category: Logic ICs/Gates
- Datasheet: onsemi 74AC32MTCX
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 2V~6V
- Logic Gate Type: ORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.9V~1.65V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 2.1V~3.85V
- Propagation Delay Time: 7.5ns@5V,50pF
- Quiescent Current (Max): 2uA
- Package: TSSOP-14
- Manufacturer: onsemi
- Packaging: Tube
- Part Status: Active
- Logic Type: OR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.9V ~ 1.65V
- Logic Level - High: 2.1V ~ 3.85V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Base Part Number: 74AC32
- detail: OR Gate IC 4 Channel 14-TSSOP
