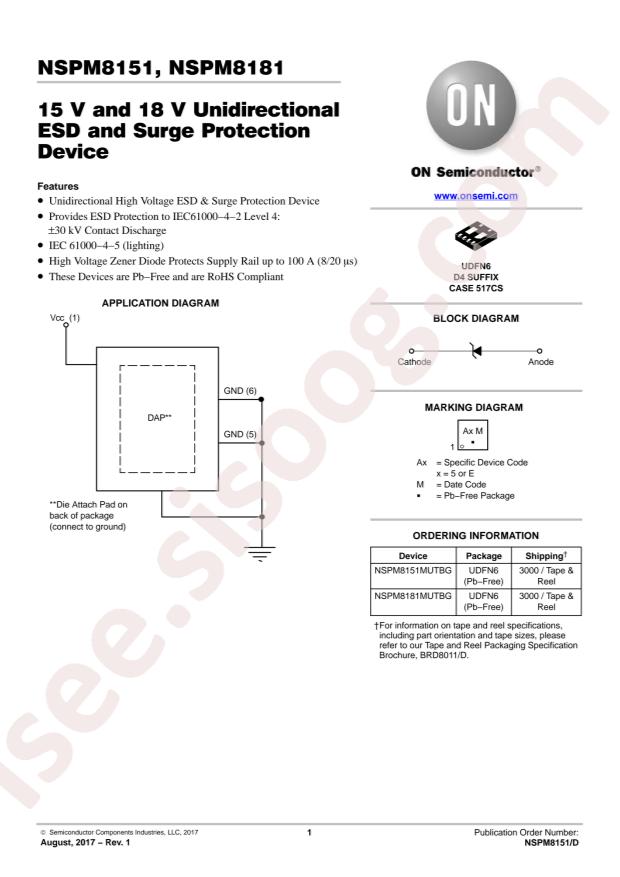

NSPM8181MUTBG دیتاشیت

NSPM8181MUTBG

مشخصات دیتاشیت

نام دیتاشیت NSPM8181MUTBG
حجم فایل 58.256 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت NSPM8181MUTBG

دانلود دیتاشیت

سایر مستندات

NSPM8151, NSPM8181 4 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi NSPM8181MUTBG
  • Number of Lines: 1
  • Clamping Voltage@Ipp: 30V
  • Operating Temperature: -55°C~+125°C@(Ta)
  • Breakdown Voltage (VBR): 20V
  • Peak Pulse Power(Ppp)@8/20us: -
  • Junction Capacitance(Cj)@1MHz: -
  • Reverse Stand-Off Voltage (Vrwm): 18V
  • Package: UDFN-6
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 18V
  • Voltage - Breakdown (Min): 20V
  • Voltage - Clamping (Max) @ Ipp: 30V
  • Current - Peak Pulse (10/1000µs): 100A (8/20µs)
  • Power - Peak Pulse: -
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: 6-UFDFN Exposed Pad
  • Supplier Device Package: 6-UDFN (1.8x2)
  • Base Part Number: NSPM81
  • detail: 30V Clamp 100A (8/20µs) Ipp Tvs Diode Surface Mount 6-UDFN (1.8x2)
