دیتاشیت SI8236AA-D-IMR
مشخصات دیتاشیت
نام دیتاشیت |

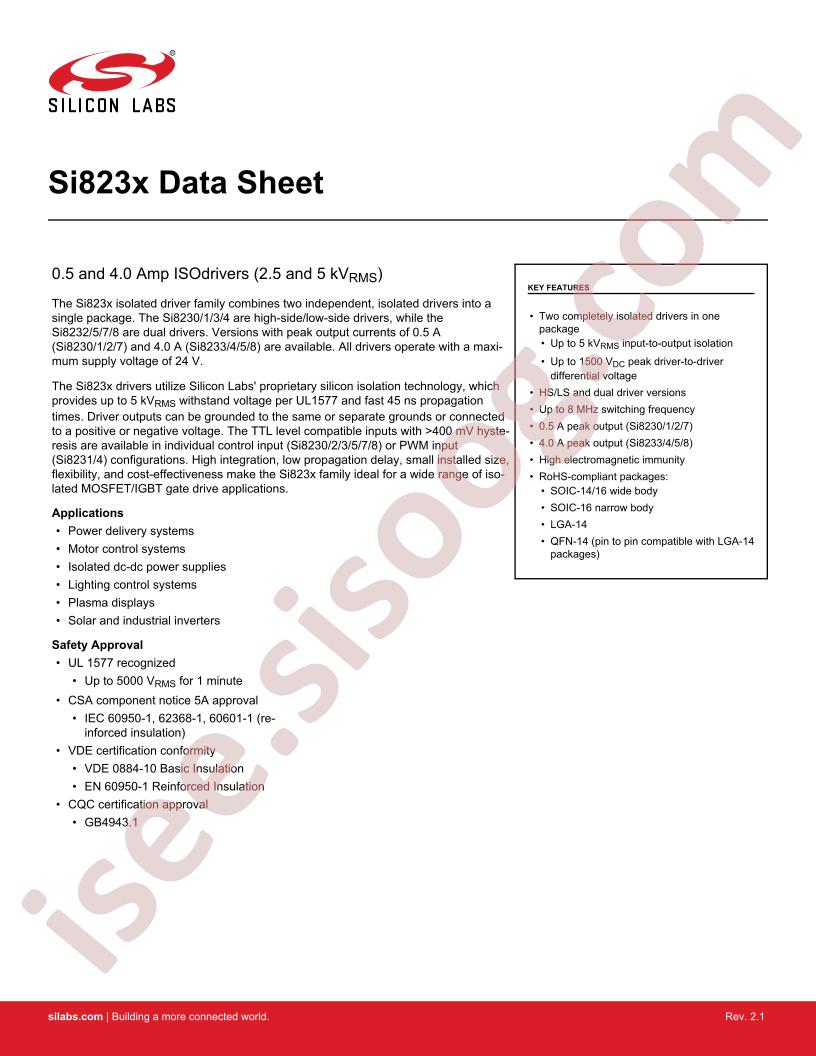

Si823x
|
حجم فایل |
926.602
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
59
|
مشخصات
-
Number of Channels:
2
-
Voltage - Forward (Vf) (Typ):
-
-
Current - Output High, Low:
2A, 4A
-
Rise / Fall Time (Typ):
12ns, 12ns (Max)
-
Supplier Device Package:
14-LGA (5x5)
-
Propagation Delay tpLH / tpHL (Max):
60ns, 60ns
-
Operating Temperature:
-40°C ~ 125°C
-
Voltage - Output Supply:
6.5V ~ 24V
-
Manufacturer:
Silicon Labs
-
Mounting Type:
Surface Mount
-
Packaging:
Tube
-
Technology:
Capacitive Coupling
-
Package / Case:
14-VFLGA
-
Current - Peak Output:
4A
-
Common Mode Transient Immunity (Min):
20kV/µs
-
Approval Agency:
CQC, CSA, UR, VDE
-
Voltage - Isolation:
1000Vrms
-
Series:
Automotive, AEC-Q100
-
Pulse Width Distortion (Max):
5.6ns
-
Part Status:
Obsolete
-
detail:
4A Gate Driver Capacitive Coupling 1000Vrms 2 Channel 14-LGA (5x5)
