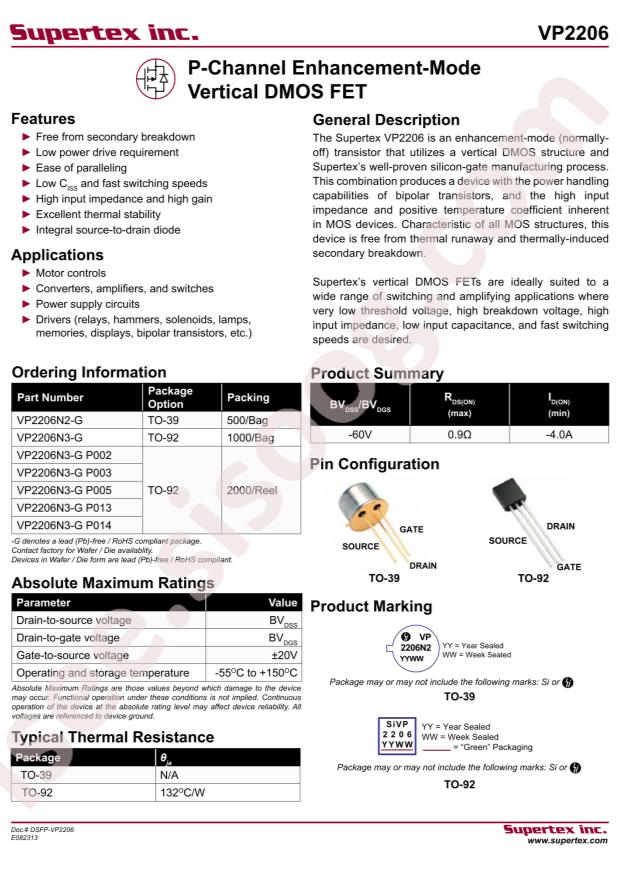

VP2206N2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
VP2206N2
|
|
حجم فایل
|
109.342
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Microchip Tech VP2206N2
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
360mW
-
Input Capacitance (Ciss@Vds):
450pF@25V
-
Continuous Drain Current (Id):
750mA
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@10mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
900mΩ@3.5A,10V
-
Package:
TO-39
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
750mA (Tj)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
900mOhm @ 3.5A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 10mA
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
450pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
360mW (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-39
-
Package / Case:
TO-205AD, TO-39-3 Metal Can
-
detail:
P-Channel 60V 750mA (Tj) 360mW (Tc) Through Hole TO-39
