M74VHC1GT86DFT1G دیتاشیت

M74VHC1GT86DFT1G

مشخصات دیتاشیت

نام دیتاشیت M74VHC1GT86DFT1G
حجم فایل 81.754 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

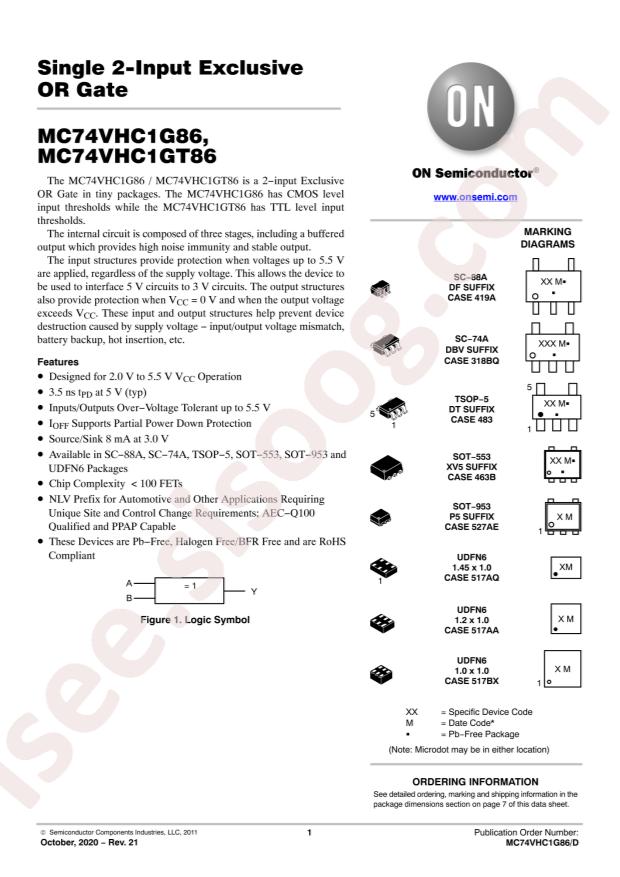

مشاهده دیتاشیت M74VHC1GT86DFT1G

دانلود دیتاشیت

سایر مستندات

M74, MC74VHC1GT86 6 pages

مشخصات فنی

  • RoHS: true
  • Series: 74VHC
  • Category: Logic ICs/Gates
  • Datasheet: onsemi M74VHC1GT86DFT1G
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 3V~5.5V
  • Logic Gate Type: XORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.53V~0.8V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.4V~2V
  • Propagation Delay Time: 8.8ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SC-70
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: XOR (Exclusive OR)
  • Number of Circuits: 1
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 3V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 8mA, 8mA
  • Logic Level - Low: 0.53V ~ 0.8V
  • Logic Level - High: 1.4V ~ 2V
  • Max Propagation Delay @ V, Max CL: 8.8ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-88A (SC-70-5/SOT-353)
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Base Part Number: M74VHC1
  • detail: XOR (Exclusive OR) IC 1 Channel SC-88A (SC-70-5/SOT-353)
