MC74VHC1G05DTT1G دیتاشیت

MC74VHC1G05DTT1G

مشخصات دیتاشیت

نام دیتاشیت MC74VHC1G05DTT1G
حجم فایل 73.885 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

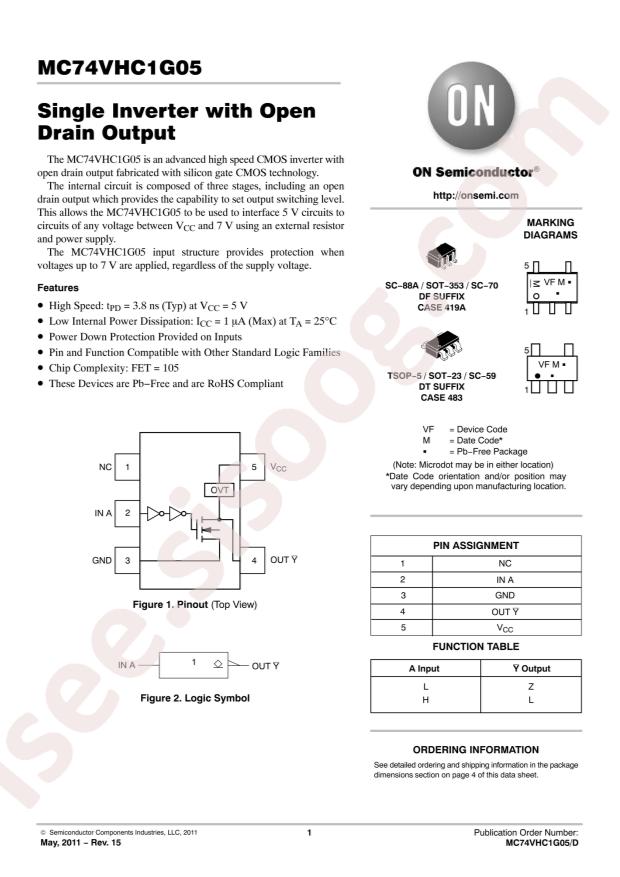

مشاهده دیتاشیت MC74VHC1G05DTT1G

دانلود دیتاشیت

سایر مستندات

MC74VHC1G05, MC74VHC1GT05 14 pages

مشخصات فنی

  • RoHS: true
  • Series: 74VHC
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi MC74VHC1G05DTT1G
  • Sink Current: 8mA
  • Number of Inputs: 1
  • Number of Circuits: 1
  • Supply Current (Max): 1uA
  • Low level range (VIL): 0.5V~1.65V
  • Max Propagation Delay: 7.5ns@5V,50pF
  • Operating Temperature: -55°C~+125°C
  • High level range (VIH): 1.5V~3.85V
  • Supply Voltage(Single): 2V~5.5V
  • Package: SOT-23-5
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: Inverter
  • Features: Open Drain
  • Voltage - Supply: 2V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: -, 8mA
  • Logic Level - Low: 0.5V ~ 1.65V
  • Logic Level - High: 1.5V ~ 3.85V
  • Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: 5-TSOP
  • Package / Case: SOT-23-5 Thin, TSOT-23-5
  • Base Part Number: MC74VHC1G05
  • detail: Inverter IC 1 Channel Open Drain 5-TSOP
