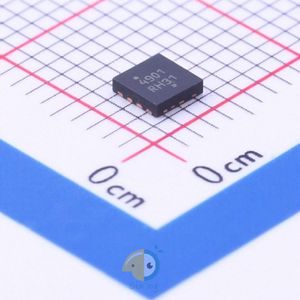

NTLLD4901NFTWG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTLLD4901NFTWG
|
|
حجم فایل
|
62.371
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

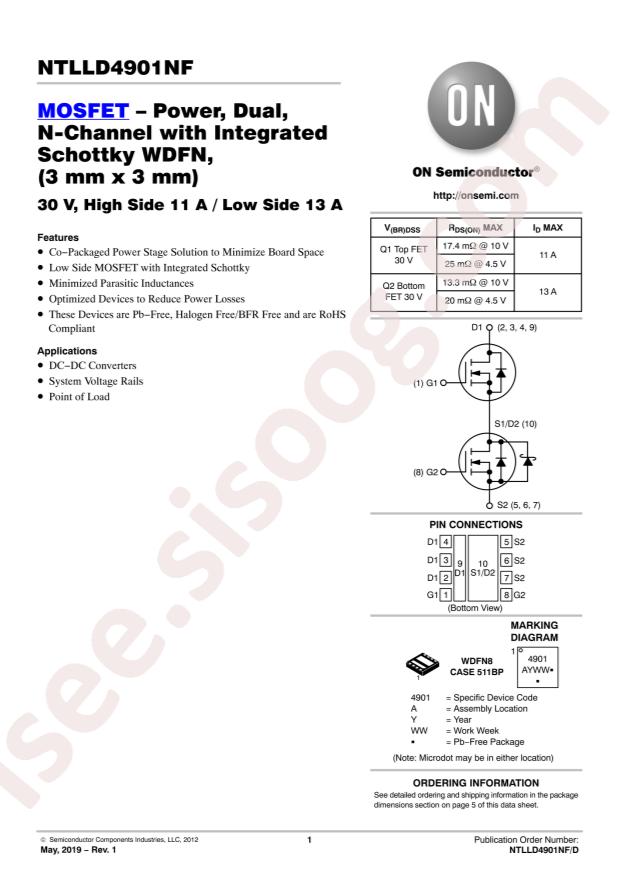

onsemi NTLLD4901NFTWG
-
Power Dissipation (Pd):
-
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
-
-
Input Capacitance (Ciss@Vds):
-
-
Continuous Drain Current (Id):
-
-
Gate Threshold Voltage (Vgs(th)@Id):
-
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
-
-
Package:
DFN-8-EP(3x3)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
5.5A, 6.3A
-
Rds On (Max) @ Id, Vgs:
17.4mOhm @ 9A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
12nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
605pF @ 15V
-
Power - Max:
800mW, 810mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-PowerWDFN
-
Supplier Device Package:
8-WDFN (3x3)
-
Base Part Number:
NTLLD49
-
detail:
Mosfet Array 2 N-Channel (Dual) 30V 5.5A, 6.3A 800mW, 810mW Surface Mount 8-WDFN (3x3)
