NTMFS4926NT1G دیتاشیت
مشخصات دیتاشیت
|

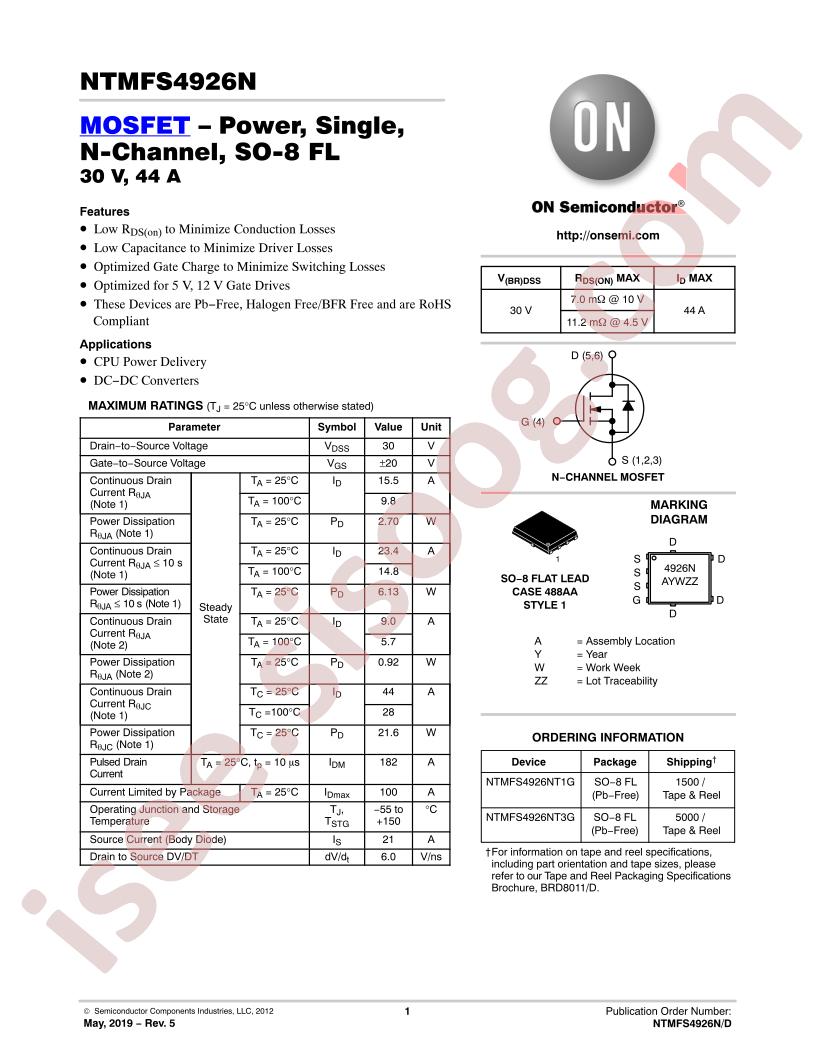

نام دیتاشیت
|
NTMFS4926N
|
|
حجم فایل
|
130.863
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
9A (Ta), 44A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
7mOhm @ 30A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
17.3nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1004pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
920mW (Ta), 21.6W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Base Part Number:
NTMFS4
-
detail:
N-Channel 30V 9A (Ta), 44A (Tc) 920mW (Ta), 21.6W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
