- دیتاشیت MC74HC4851ADTR2G
MC74HC4851ADTR2G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC74HC4851ADTR2G |
|---|---|
| حجم فایل | 81.534 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت MC74HC4851ADTR2G |
دانلود دیتاشیت |
|---|
سایر مستندات

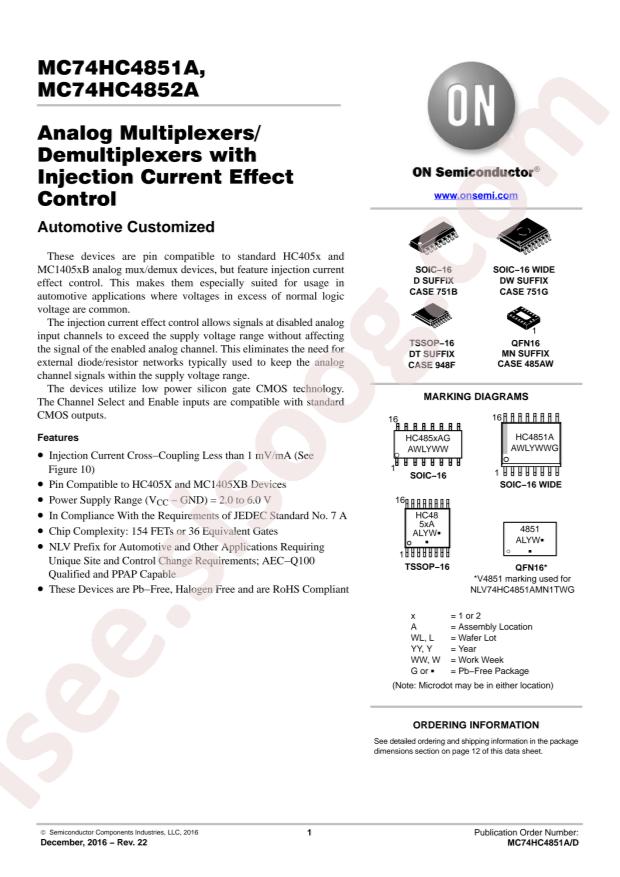

MC74HC4851A, MC74HC4852A 16 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: onsemi MC74HC4851ADTR2G
- Supply Voltage: 2V~6V
- Switch Circuit: -
- Number of Channels: 1
- On-State Resistance (Max): 400Ω
- Package: TSSOP-16
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2V ~ 6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 40pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
- Base Part Number: MC74HC4851
- detail: 1 Circuit IC Switch 8:1 400Ohm 16-TSSOP
