دیتاشیت MBT3904DW1T1G
مشخصات دیتاشیت
| نام دیتاشیت | MBT/SMBT3904DWxT1G |
|---|---|
| حجم فایل | 99.144 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت MBT/SMBT3904DWxT1G |

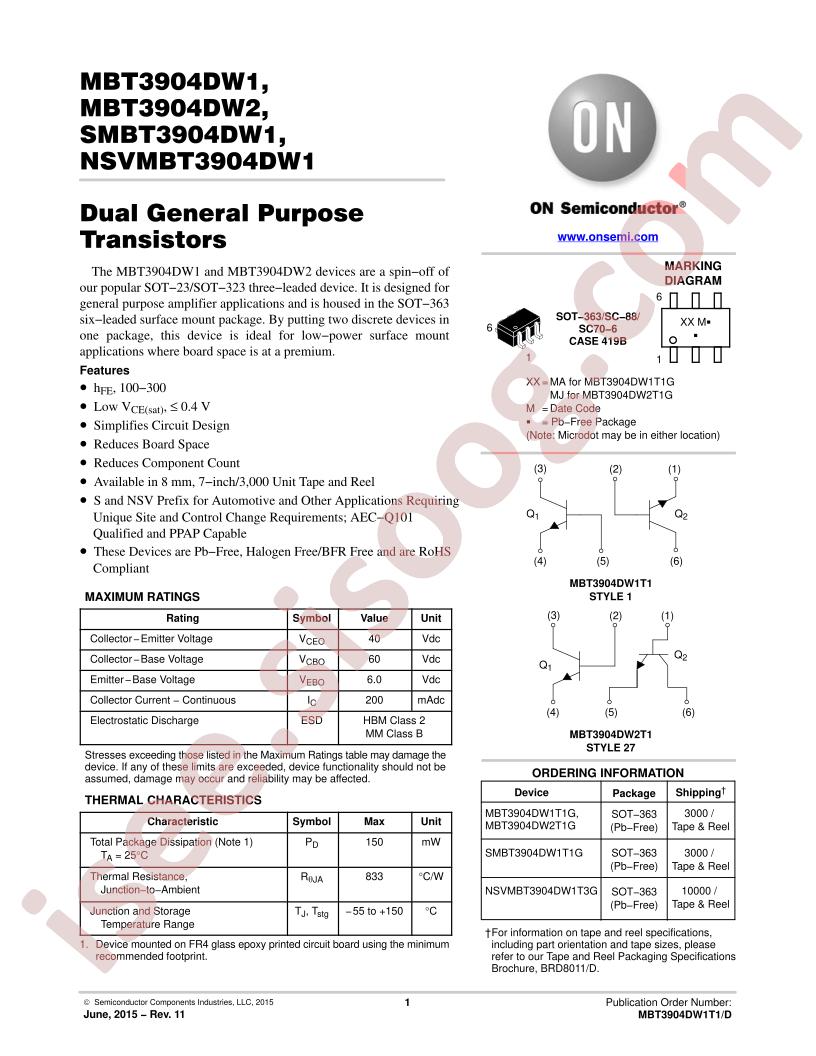

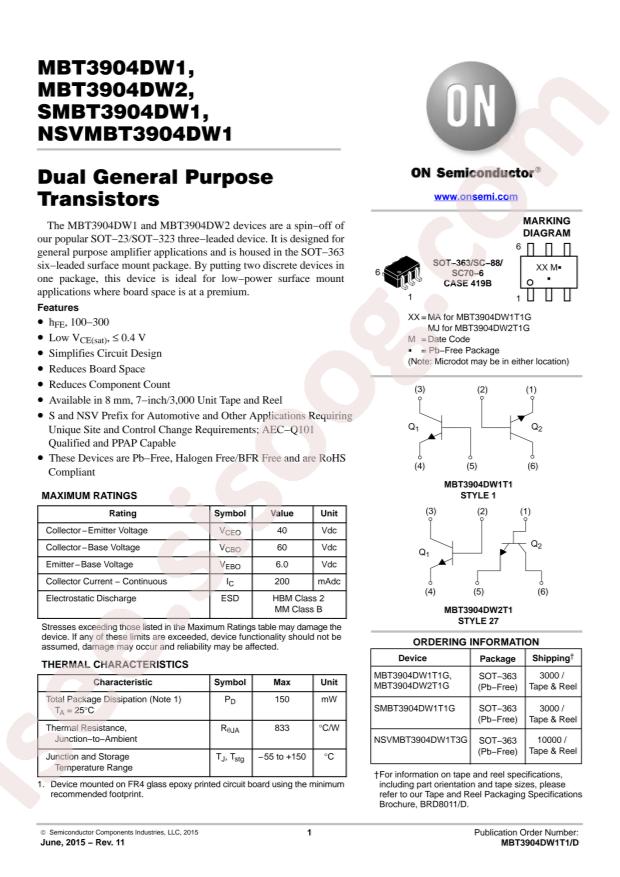

MBT/SMBT3904DWxT1G Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi MBT3904DW1T1G
- Transistor Type: 2 NPN
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 200mA
- Power Dissipation (Pd): 150mW
- Transition Frequency (fT): 300MHz
- DC Current Gain (hFE@Ic,Vce): 100@10mA,1V
- Collector-Emitter Breakdown Voltage (Vceo): 40V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@5mA,50mA

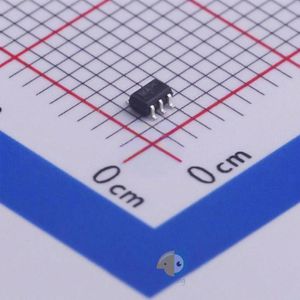

- Package: SOT-323-6
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 200mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
- Power - Max: 150mW
- Frequency - Transition: 300MHz
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-88/SC70-6/SOT-363
- Base Part Number: MBT3904
- detail: Bipolar (BJT) Transistor Array 2 NPN (Dual) 40V 200mA 300MHz 150mW Surface Mount SC-88/SC70-6/SOT-363
