دیتاشیت CAT4016HV6-GT2

مشخصات دیتاشیت

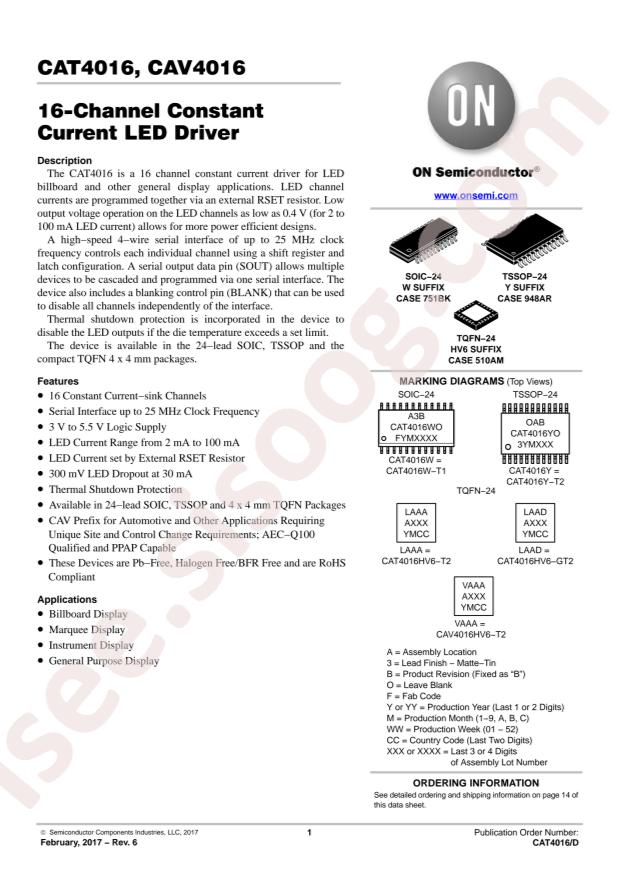

CAT4016HV6-GT2	دانلود دیتاشیت

CAT4016 14 pages

RoHS: true
Type: Linear
Dimming: PWM
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 16
Topology: Shift Register
Datasheet: onsemi CAT4016HV6-GT2
Input Voltage: 3V~5.5V
Output Current: 80mA
Output Voltage: 5.5V
Switch Frequency: 25MHz
Operating temperature: -40°C~+85°C
Package: TQFN-24-EP(4x4)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Internal Switch(s): Yes
Number of Outputs: 16
Voltage - Supply (Min): 3V
Voltage - Supply (Max): 5.5V
Voltage - Output: 5.5V
Current - Output / Channel: 80mA
Frequency: 25MHz
Applications: Signage
Mounting Type: Surface Mount
Package / Case: 24-WFQFN Exposed Pad
Supplier Device Package: 24-TQFN (4x4)
Base Part Number: CAT4016
detail: LED Driver IC 16 Output Linear Shift Register PWM Dimming 80mA 24-TQFN (4x4)
