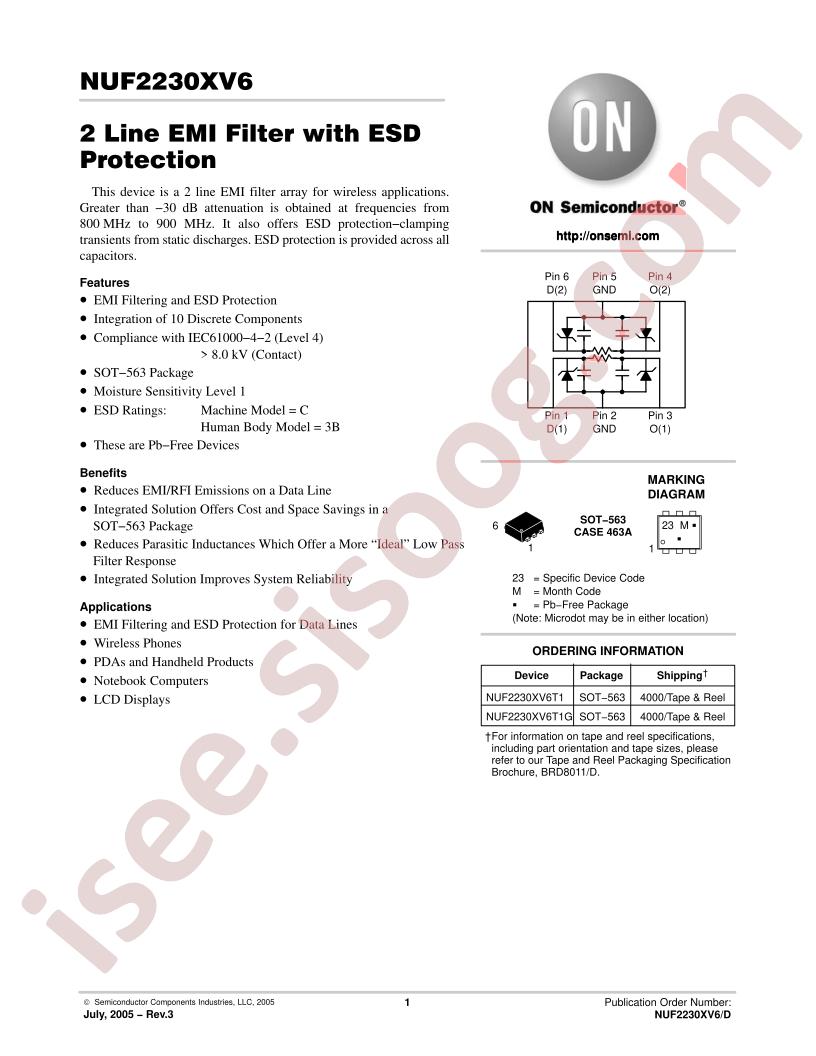

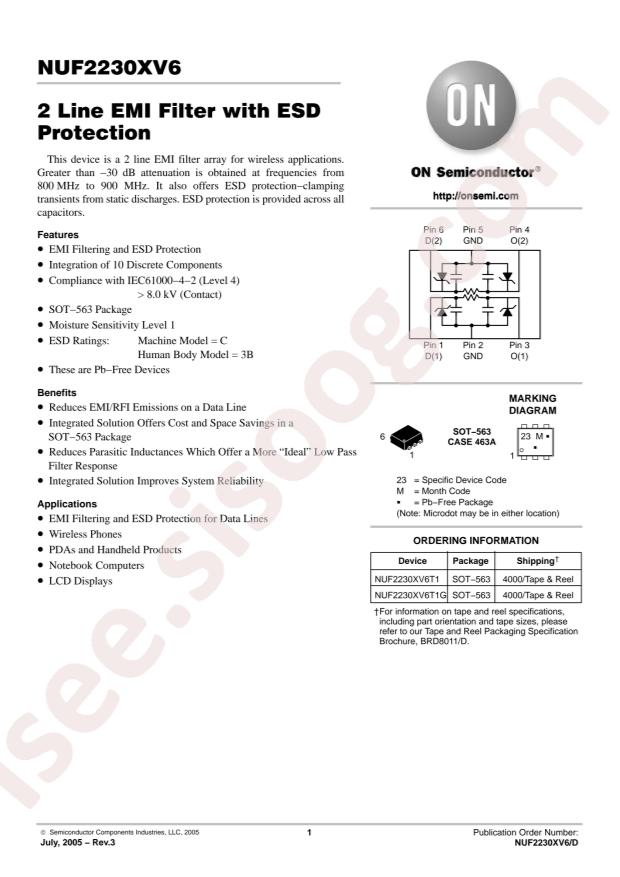

دیتاشیت NUF2230XV6T1G
مشخصات دیتاشیت
| نام دیتاشیت |
NUF2230XV6
|
| حجم فایل |
51.164
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Bead/Filter/EMI Optimization/EMI Filters (LC, RC Networks)
-
Datasheet:
onsemi NUF2230XV6T1G
-
Capacitance:
16pF
-
Filter Order:
2
-
ESD Protection:
Yes
-
Attenuation Value:
30dB@800MHz~900MHz
-
Number of Channels:
2
-
OperatingTemperature:
-40°C~+85°C
-
Frequency - Cutoff or Center:
125MHz
-
Package:
SOT-563
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Type:
Low Pass
-
Technology:
RC (Pi)
-
Center / Cutoff Frequency:
125MHz (Cutoff)
-
Resistance - Channel (Ohms):
100
-
Values:
R = 100Ohms, C = 16pF
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-563, SOT-666
-
Size / Dimension:
0.063" L x 0.047" W (1.60mm x 1.20mm)
-
Height:
0.024" (0.60mm)
-
Base Part Number:
NUF2230
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 100Ohms, C = 16pF SOT-563, SOT-666
