دیتاشیت FGH60N60SFDTU-F085
مشخصات دیتاشیت
| نام دیتاشیت | FGH60N60SFDTU_F085 |
|---|---|
| حجم فایل | 479.695 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت FGH60N60SFDTU_F085 |

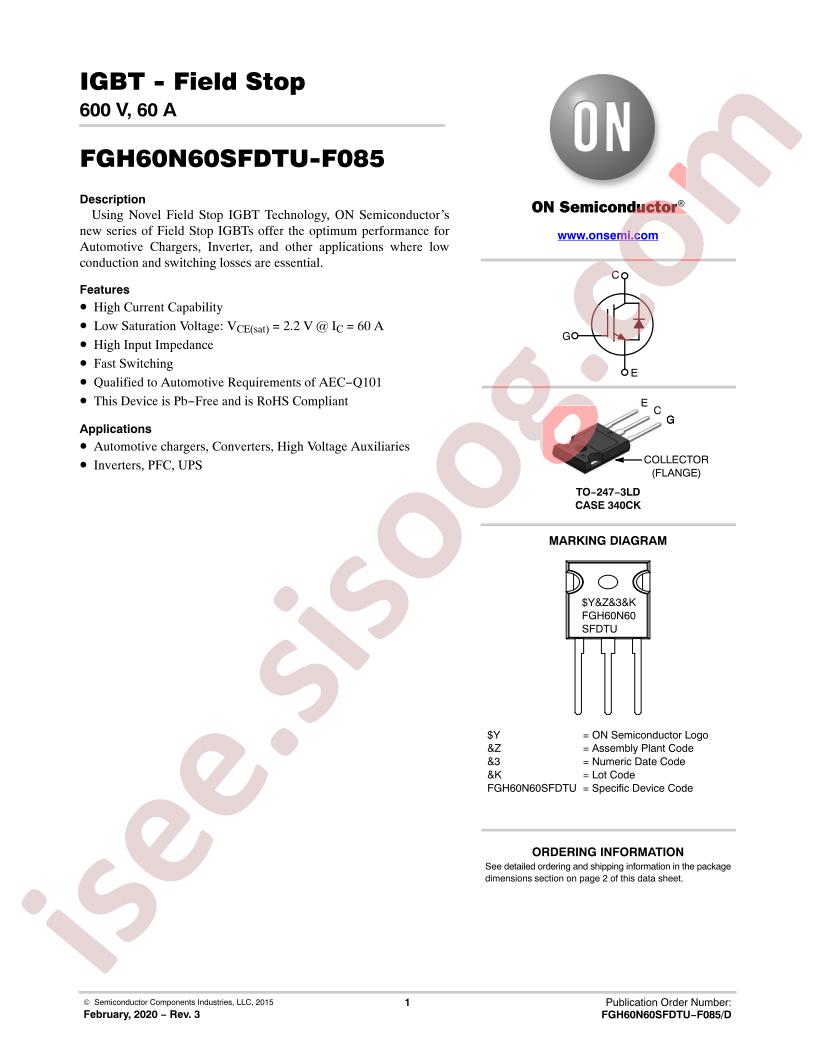

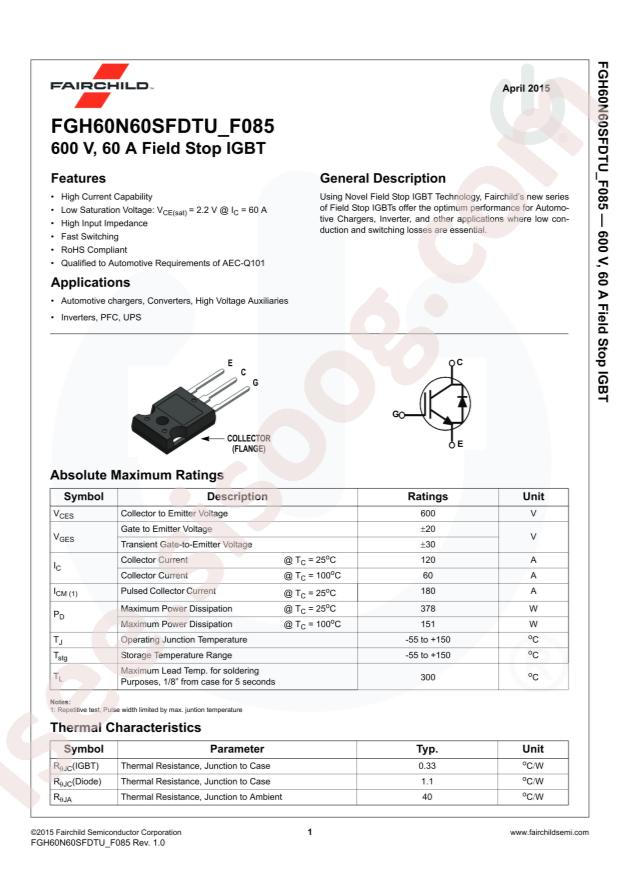

FGH60N60SFDTU_F085 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Field Stop
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: onsemi FGH60N60SFDTU-F085
- Operating Temperature: 55°C~+150°C@(Tj)
- Collector Current (Ic): 120A
- Power Dissipation (Pd): 378W
- Turn?on Delay Time (Td(on)): 26ns
- Turn?on Switching Loss (Eon): 1.97mJ
- Total Gate Charge (Qg@Ic,Vge): 188nC
- Turn?off Delay Time (Td(off)): 134ns
- Pulsed Collector Current (Icm): 180A
- Diode Reverse Recovery Time (Trr): 55ns
- Collector-Emitter Breakdown Voltage (Vces): 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): 2.9V@15V,60A
- Package: TO-247-3
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Tube
- Part Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600V
- Current - Collector (Ic) (Max): 120A
- Current - Collector Pulsed (Icm): 180A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 60A
- Power - Max: 378W
- Switching Energy: 1.97mJ (on), 570µJ (off)
- Input Type: Standard
- Gate Charge: 188nC
- Td (on/off) @ 25°C: 26ns/134ns
- Test Condition: 400V, 60A, 5Ohm, 15V
- Reverse Recovery Time (trr): 55ns
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
- Base Part Number: FGH60
- detail: IGBT Field Stop 600V 120A 378W Through Hole TO-247-3
