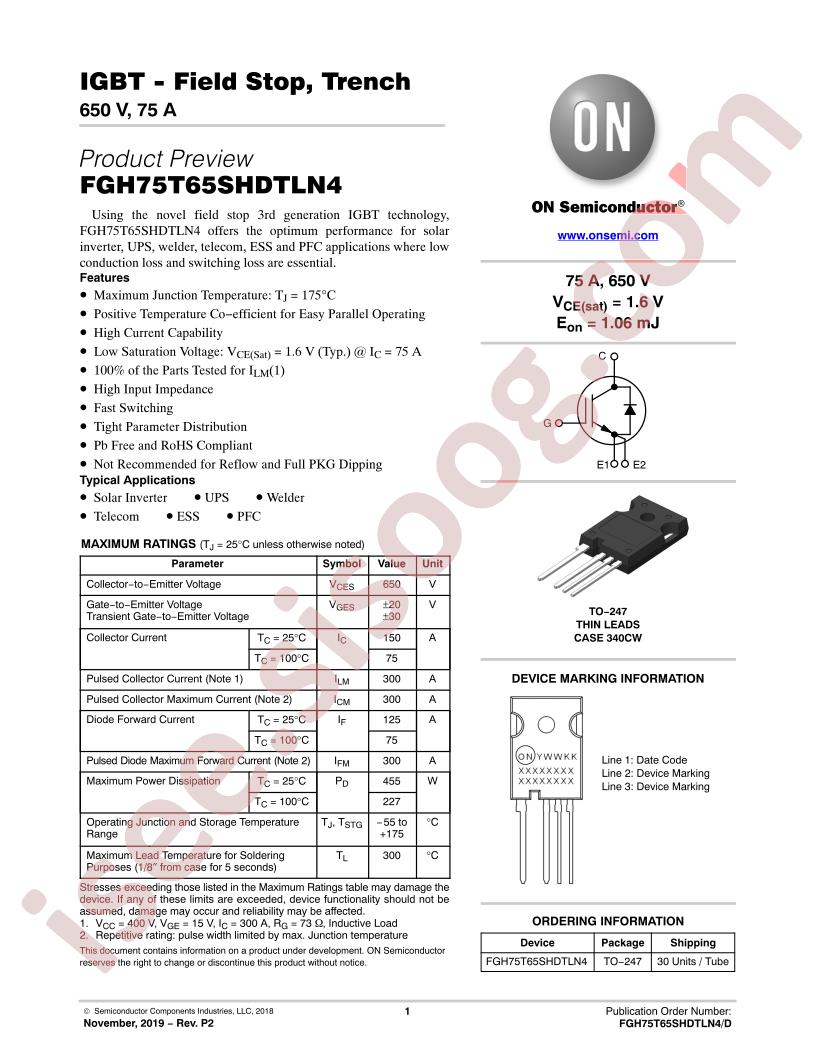

FGH75T65SHDTLN4 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FGH75T65SHDTLN4
|
|
حجم فایل
|
468.851
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi FGH75T65SHDTLN4
-
Package:
TO-247-4
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
150A
-
Current - Collector Pulsed (Icm):
300A
-
Vce(on) (Max) @ Vge, Ic:
2.1V @ 15V, 75A
-
Power - Max:
455W
-
Switching Energy:
1.06mJ (on), 1.56mJ (off)
-
Input Type:
Standard
-
Gate Charge:
126nC
-
Td (on/off) @ 25°C:
55ns/189ns
-
Test Condition:
400V, 75A, 15Ohm, 15V
-
Reverse Recovery Time (trr):
36ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-4
-
Supplier Device Package:
TO-247-4
-
Base Part Number:
FGH75
-
detail:
IGBT Trench Field Stop 650V 150A 455W Through Hole TO-247-4
