FGY60T120SQDN دیتاشیت

FGY60T120SQDN

مشخصات دیتاشیت

نام دیتاشیت FGY60T120SQDN
حجم فایل 88.666 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت FGY60T120SQDN

دانلود دیتاشیت

سایر مستندات

FGY60T120SQDN 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi FGY60T120SQDN

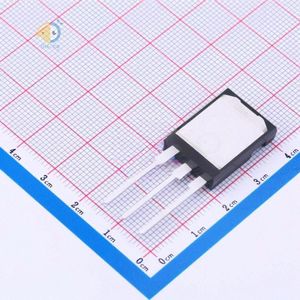

  • Package: TO-247
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 120A
  • Current - Collector Pulsed (Icm): 240A
  • Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 60A
  • Power - Max: 517W
  • Switching Energy: -
  • Input Type: Standard
  • Gate Charge: 311nC
  • Td (on/off) @ 25°C: 52ns/296ns
  • Test Condition: 600V, 60A, 10Ohm, 15V
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: FGY60
  • detail: IGBT 1200V 120A 517W Through Hole TO-247-3
