دیتاشیت NVHL040N65S3F
مشخصات دیتاشیت
| نام دیتاشیت |
NVHL040N65S3F
|
| حجم فایل |
292.318
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

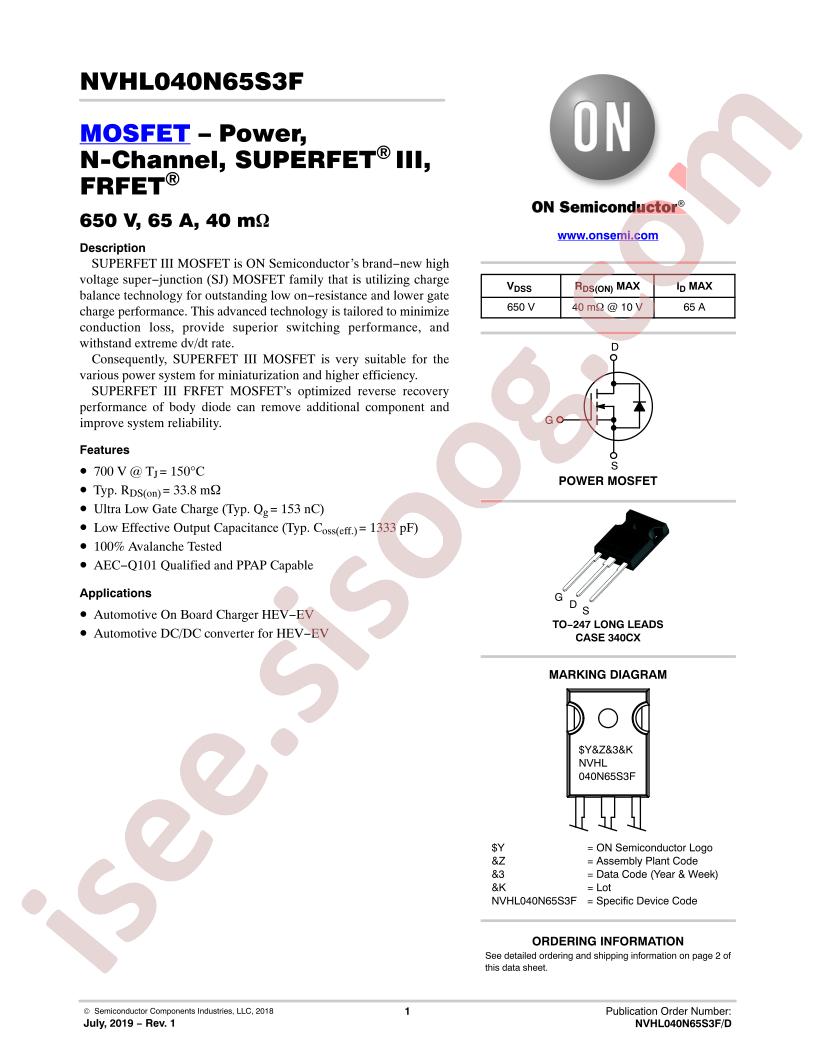

Datasheet:
onsemi NVHL040N65S3F
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
446W
-
Total Gate Charge (Qg@Vgs):
153nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
5.875nF@400V
-
Continuous Drain Current (Id):
65A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@2.1mA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
33.8mΩ@10V,32.5A
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101, SuperFET® III, FRFET®
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
650V
-
Current - Continuous Drain (Id) @ 25°C:
65A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
40mOhm @ 32.5A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 2.1mA
-
Gate Charge (Qg) (Max) @ Vgs:
153nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
5875pF @ 400V
-
FET Feature:
-
-
Power Dissipation (Max):
446W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247-3
-
Package / Case:
TO-247-3
-
Base Part Number:
NVHL04
-
detail:
N-Channel 650V 65A (Tc) 446W (Tc) Through Hole TO-247-3
