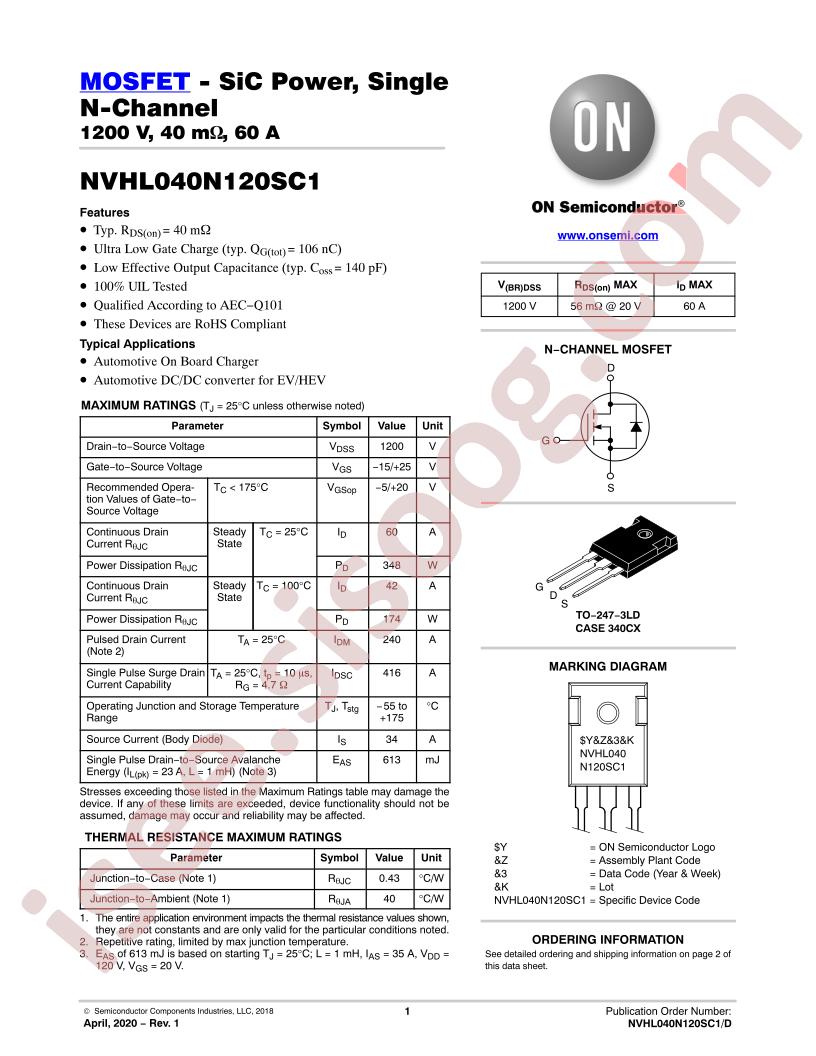

NVHL040N120SC1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVHL040N120SC1
|
|
حجم فایل
|
246.927
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
SiC (Silicon Carbide Junction Transistor)
-
Drain to Source Voltage (Vdss):
1200V
-
Current - Continuous Drain (Id) @ 25°C:
60A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
20V
-
Rds On (Max) @ Id, Vgs:
56mOhm @ 35A, 20V
-
Vgs(th) (Max) @ Id:
4.3V @ 10mA
-
Gate Charge (Qg) (Max) @ Vgs:
106nC @ 20V
-
Vgs (Max):
+25V, -15V
-
Input Capacitance (Ciss) (Max) @ Vds:
1781pF @ 800V
-
FET Feature:
-
-
Power Dissipation (Max):
348W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247-3
-
Package / Case:
TO-247-3 Variant
-
detail:
N-Channel 1200V 60A (Tc) 348W (Tc) Through Hole TO-247-3
