NVH4L040N120SC1 دیتاشیت

NVH4L040N120SC1

مشخصات دیتاشیت

نام دیتاشیت NVH4L040N120SC1
حجم فایل 97.734 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

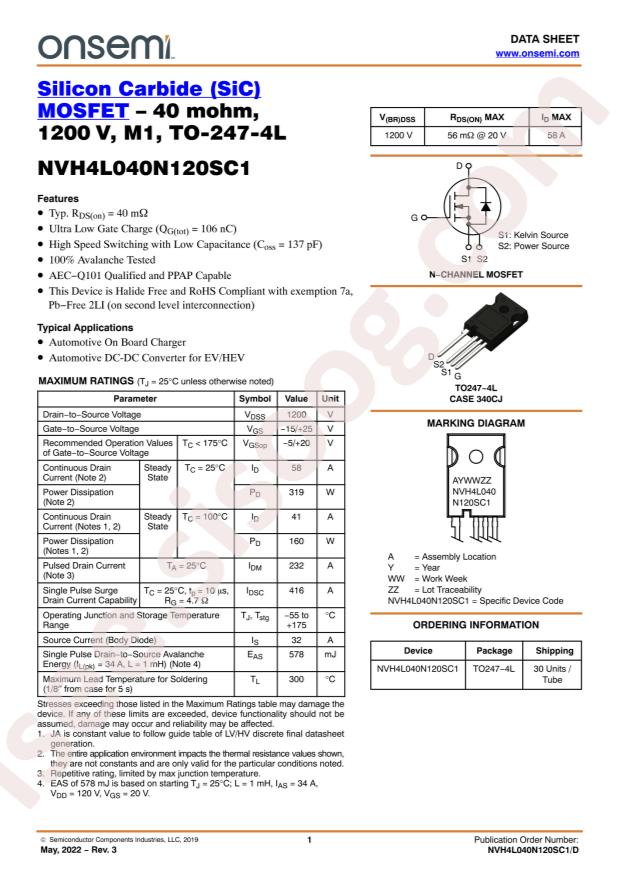

مشاهده دیتاشیت NVH4L040N120SC1

دانلود دیتاشیت

سایر مستندات

NVH4L040N120SC1 8 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NVH4L040N120SC1
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 319W
  • Total Gate Charge (Qg@Vgs): 106nC@-5V/20V
  • Drain Source Voltage (Vdss): 1.2kV
  • Input Capacitance (Ciss@Vds): 1.762nF@800V
  • Continuous Drain Current (Id): 58A
  • Gate Threshold Voltage (Vgs(th)@Id): 3V@10mA
  • Reverse Transfer Capacitance (Crss@Vds): 11pF@800V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 40mΩ@20V,35A
  • Package: TO-247-4
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: SiC (Silicon Carbide Junction Transistor)
  • Drain to Source Voltage (Vdss): 1200V
  • Current - Continuous Drain (Id) @ 25°C: 58A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 20V
  • Rds On (Max) @ Id, Vgs: 56mOhm @ 35A, 20V
  • Vgs(th) (Max) @ Id: 4.3V @ 10mA
  • Gate Charge (Qg) (Max) @ Vgs: 106nC @ 20V
  • Vgs (Max): +25V, -15V
  • Input Capacitance (Ciss) (Max) @ Vds: 1762pF @ 800V
  • FET Feature: -
  • Power Dissipation (Max): 319W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-4
  • Package / Case: TO-247-4
  • detail: N-Channel 1200V 58A (Tc) 319W (Tc) Through Hole TO-247-4
