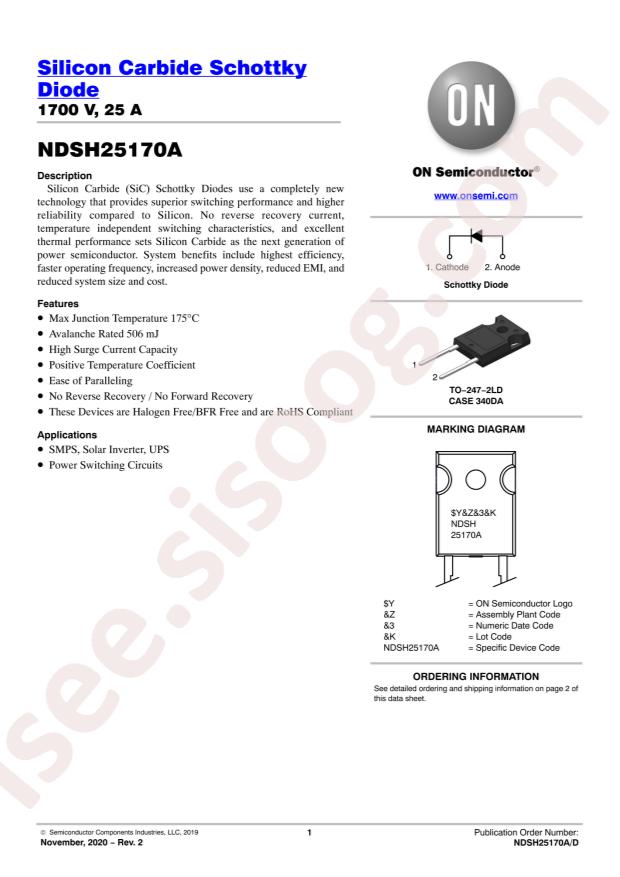

NDSH25170A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NDSH25170A
|
|
حجم فایل
|
58.97
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi NDSH25170A
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
1.7kV
-
Forward Voltage (Vf@If):
1.5V@25A
-
Reverse Leakage Current (Ir):
80nA@1.7kV
-
Average Rectified Current (Io):
35A
-

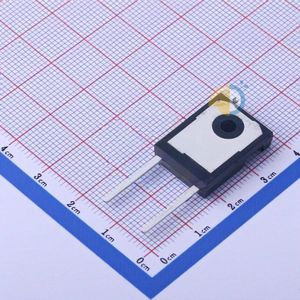

Package:
TO-247-2LD
-
Manufacturer:
onsemi
-
Series:
-
-
Part Status:
Active
-
Diode Type:
Silicon Carbide Schottky
-
Voltage - DC Reverse (Vr) (Max):
1700V
-
Current - Average Rectified (Io):
25A
-
Voltage - Forward (Vf) (Max) @ If:
1.75V @ 25A
-
Speed:
No Recovery Time > 500mA (Io)
-
Reverse Recovery Time (trr):
0ns
-
Current - Reverse Leakage @ Vr:
40µA @ 1700V
-
Capacitance @ Vr, F:
2025pF @ 1V, 100kHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-2
-
Supplier Device Package:
TO-247-2
-
Operating Temperature - Junction:
-55°C ~ 175°C
-
Base Part Number:
NDSH25
-
detail:
Diode Silicon Carbide Schottky 1700V 25A Through Hole TO-247-2
