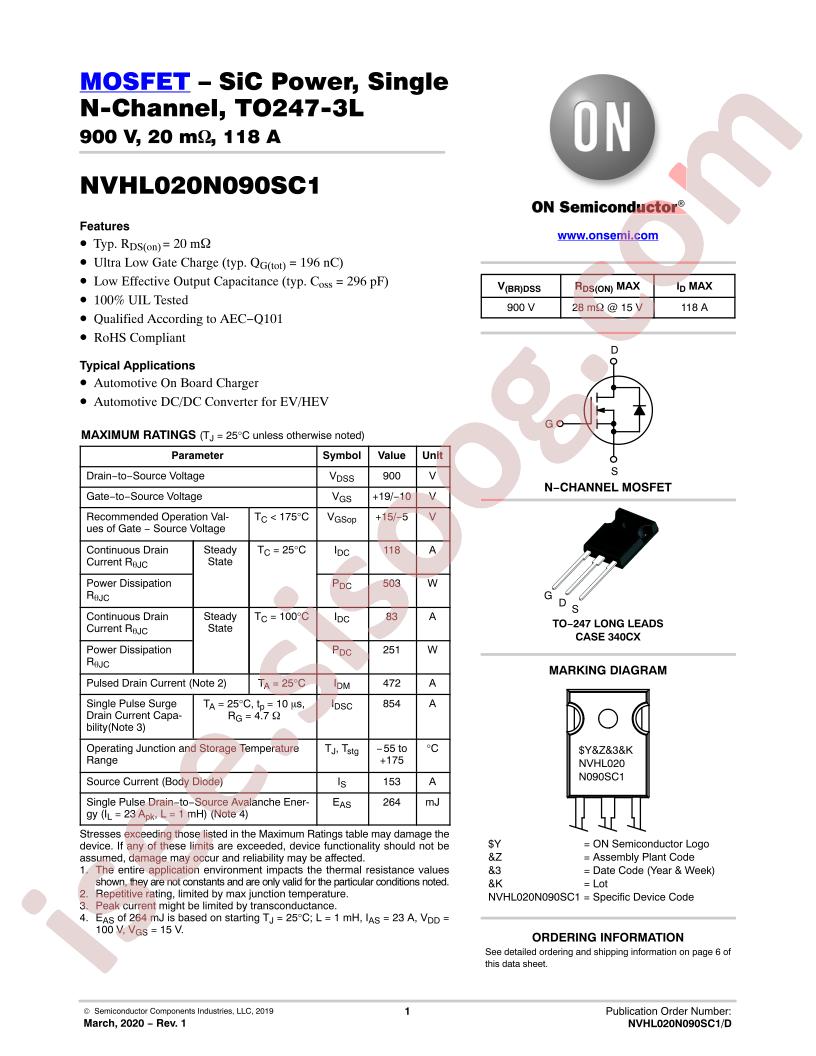

NVHL020N090SC1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVHL020N090SC1
|
|
حجم فایل
|
269.258
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
SiCFET (Silicon Carbide)
-
Drain to Source Voltage (Vdss):
900V
-
Current - Continuous Drain (Id) @ 25°C:
118A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
15V
-
Rds On (Max) @ Id, Vgs:
28mOhm @ 60A, 15V
-
Vgs(th) (Max) @ Id:
4.3V @ 20mA
-
Gate Charge (Qg) (Max) @ Vgs:
196nC @ 15V
-
Vgs (Max):
+19V, -10V
-
Input Capacitance (Ciss) (Max) @ Vds:
4415pF @ 450V
-
FET Feature:
-
-
Power Dissipation (Max):
503W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247-3
-
Package / Case:
TO-247-3 Variant
-
Base Part Number:
NVHL02
-
detail:
N-Channel 900V 118A (Tc) 503W (Tc) Through Hole TO-247-3
