NCP700BMT30TBG دیتاشیت

NCP700BMT30TBG

مشخصات دیتاشیت

نام دیتاشیت NCP700BMT30TBG
حجم فایل 81.844 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

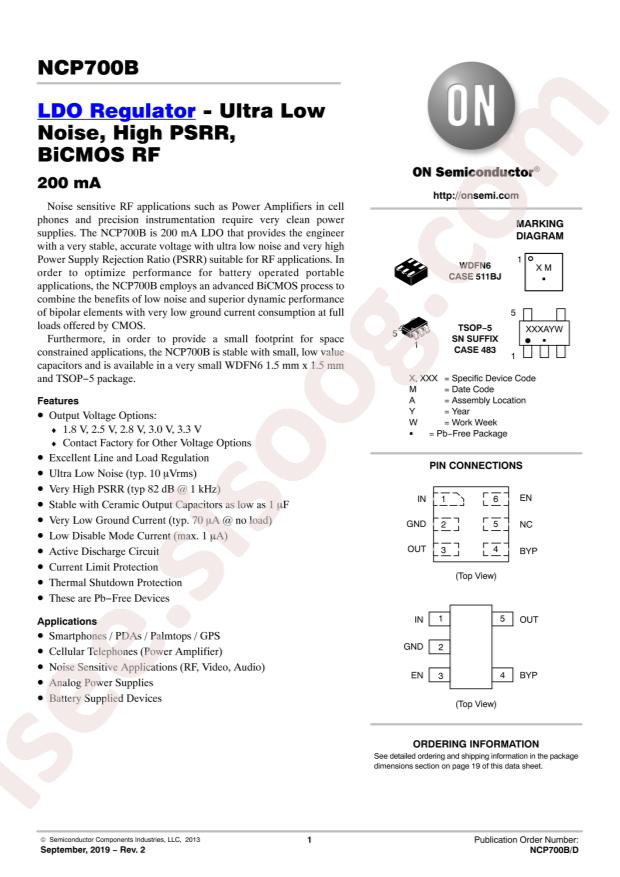

مشاهده دیتاشیت NCP700BMT30TBG

دانلود دیتاشیت

سایر مستندات

NCP700B 21 pages

مشخصات فنی

  • RoHS: true
  • Feature: Overcurrent Protection;Thermal Protection
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCP700BMT30TBG
  • Output Current: 200mA
  • Output Voltage: 3V
  • Dropout Voltage: 0.19V@(200mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 110uA
  • Power Supply Rejection Ratio (PSRR): 82dB@(1kHz)
  • Package: DFN-6(1.5x1.5)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.19V @ 200mA
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 110µA
  • Current - Supply (Max): 130µA
  • PSRR: 82dB (1kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 6-WFDFN
  • Supplier Device Package: 6-WDFN (1.5x1.5)
  • Base Part Number: NCP700
  • detail: Linear Voltage Regulator IC 1 Output 200mA 6-WDFN (1.5x1.5)
