دیتاشیت MMBD4148CC
مشخصات دیتاشیت
| نام دیتاشیت | MMBD4148(SE,CC,CA) |
|---|---|
| حجم فایل | 319.078 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت MMBD4148(SE,CC,CA) |

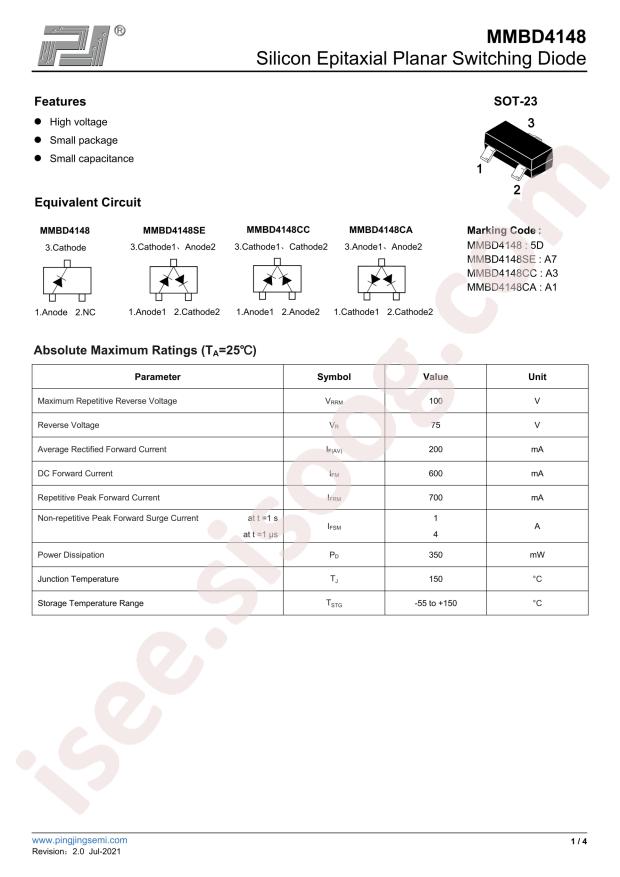

MMBD4148(SE,CC,CA) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: FOSAN MMBD4148CC
- Power Dissipation: 225mW
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 100V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 5uA@75V
- Reverse Recovery Time (trr): 4ns
- Average Rectified Current (Io): 200mA
- Package: SOT-23(TO-236)
- Manufacturer: FOSAN
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1V @ 10mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr: 5µA @ 75V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Base Part Number: MMBD41
- detail: Diode Array 1 Pair Common Cathode Standard 100V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
