SZESD7272LT1G دیتاشیت

SZESD7272LT1G

مشخصات دیتاشیت

نام دیتاشیت SZESD7272LT1G
حجم فایل 74.213 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

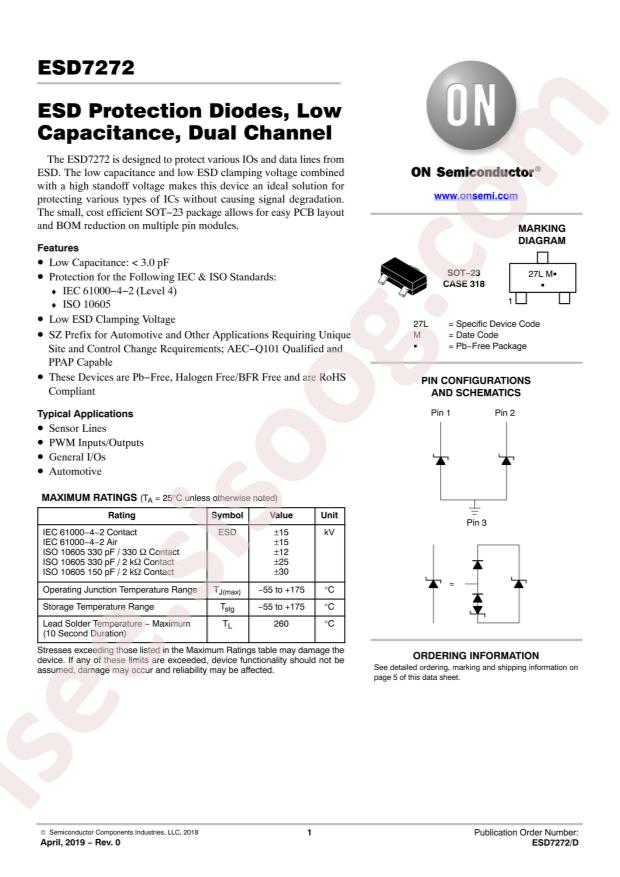

مشاهده دیتاشیت SZESD7272LT1G

دانلود دیتاشیت

سایر مستندات

ESD7272 6 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi SZESD7272LT1G
  • Number of Lines: 2
  • Clamping Voltage@Ipp: 40V
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Breakdown Voltage (VBR): 27V
  • Peak Pulse Power(Ppp)@8/20us: -
  • Junction Capacitance(Cj)@1MHz: 0.8pF@1MHz
  • Reverse Stand-Off Voltage (Vrwm): 24V
  • Package: SOT-23(TO-236)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 2
  • Voltage - Reverse Standoff (Typ): 24V (Max)
  • Voltage - Breakdown (Min): 27V
  • Voltage - Clamping (Max) @ Ipp: 10.5V (Typ)
  • Current - Peak Pulse (10/1000µs): 16A
  • Power - Peak Pulse: -
  • Power Line Protection: No
  • Applications: Automotive
  • Capacitance @ Frequency: 0.8pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Base Part Number: SZESD7
  • detail: 10.5V (Typ) Clamp 16A Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
