FDN028N20 دیتاشیت

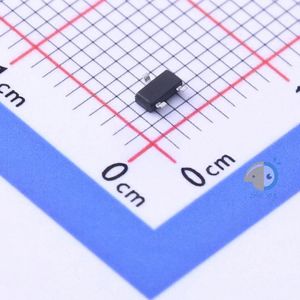

FDN028N20

مشخصات دیتاشیت

نام دیتاشیت FDN028N20
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت FDN028N20

دانلود دیتاشیت

سایر مستندات

FDN028N20 8 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDN028N20
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 1.5W
  • Total Gate Charge (Qg@Vgs): 2.8nC@2.5V
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 399pF@10V
  • Continuous Drain Current (Id): 6.1A
  • Gate Threshold Voltage (Vgs(th)@Id): 900mV@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 87pF@10V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 23mΩ@4.5V,5.2A
  • Package: SSOT-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 6.1A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 28mOhm @ 5.2A, 4.5V
  • Vgs(th) (Max) @ Id: 1.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 6nC @ 4.5V
  • Vgs (Max): ±12V
  • Input Capacitance (Ciss) (Max) @ Vds: 600pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 1.5W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SuperSOT-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: FDN028
  • detail: N-Channel 20V 6.1A (Tc) 1.5W (Tc) Surface Mount SuperSOT-3
