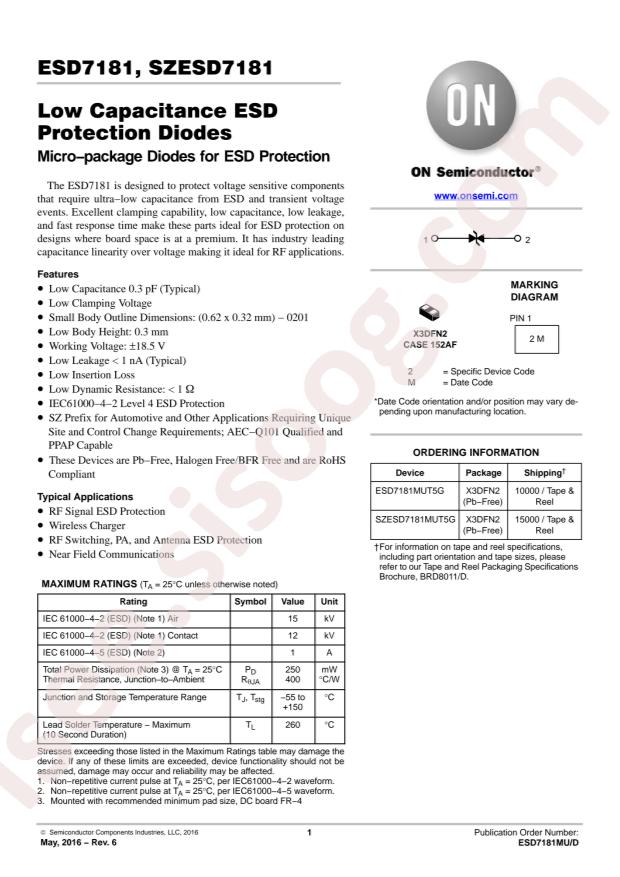

ESD7181MUT5G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ESD7181MUT5G
|
|
حجم فایل
|
90.72
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Polarity:
Bi-Directional
-
Datasheet:
onsemi ESD7181MUT5G
-
Clamping Voltage@Ipp:
35V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Breakdown Voltage (VBR):
20.5V
-
Peak Pulse Power(Ppp)@8/20us:
-
-
Junction Capacitance(Cj)@1MHz:
0.3pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
1A
-
Reverse Stand-Off Voltage (Vrwm):
18.5V
-
Package:
X3-DFN-2
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Bidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
18.5V (Max)
-
Voltage - Breakdown (Min):
20.5V
-
Voltage - Clamping (Max) @ Ipp:
35V (Typ)
-
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
-
Power - Peak Pulse:
-
-
Power Line Protection:
No
-
Applications:
RF Antenna
-
Capacitance @ Frequency:
0.3pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
0201 (0603 Metric)
-
Supplier Device Package:
2-X3DFN (0.62x0.32)
-
Base Part Number:
ESD71
-
detail:
35V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-X3DFN (0.62x0.32)
