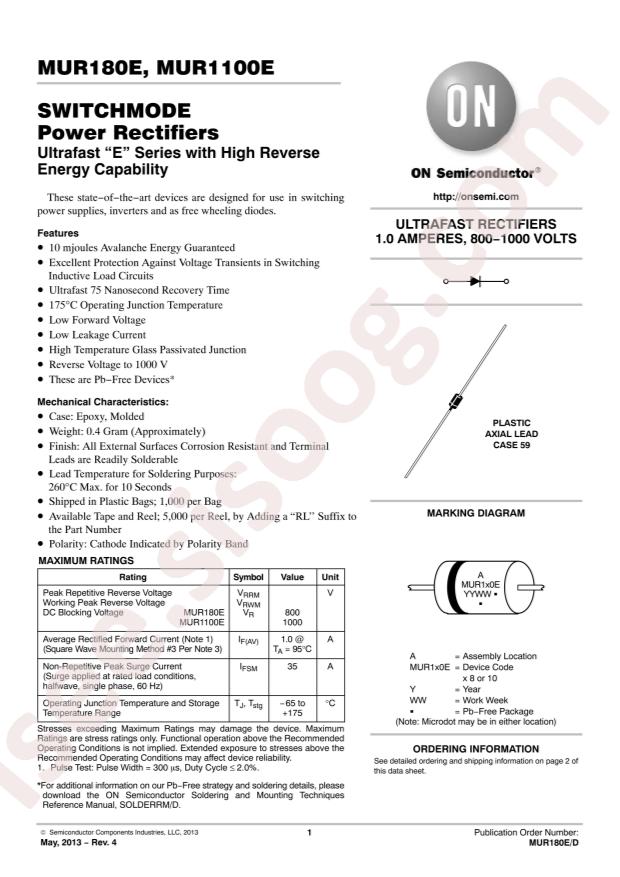

MUR1100ERLG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MUR1100ERLG
|
|
حجم فایل
|
88.4
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
onsemi MUR1100ERLG
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
1kV
-
Operating Temperature:
-65°C~+175°C@(Tj)
-
Forward Voltage (Vf@If):
1.75V@1A
-
Reverse Leakage Current:
10uA@1kV
-
Reverse Recovery Time (trr):
100ns
-
Average Rectified Current (Io):
1A
-
Package:
DO-41
-
Manufacturer:
onsemi
-
Series:
SWITCHMODE™
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
1000V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
1.75V @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
10µA @ 1000V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
DO-204AL, DO-41, Axial
-
Supplier Device Package:
Axial
-
Operating Temperature - Junction:
-65°C ~ 175°C
-
Base Part Number:
MUR11
-
detail:
Diode Standard 1000V 1A Through Hole Axial
