دیتاشیت SB05-03C-TB-E

SB05-03C

مشخصات دیتاشیت

نام دیتاشیت SB05-03C
حجم فایل 297.685 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت SB05-03C

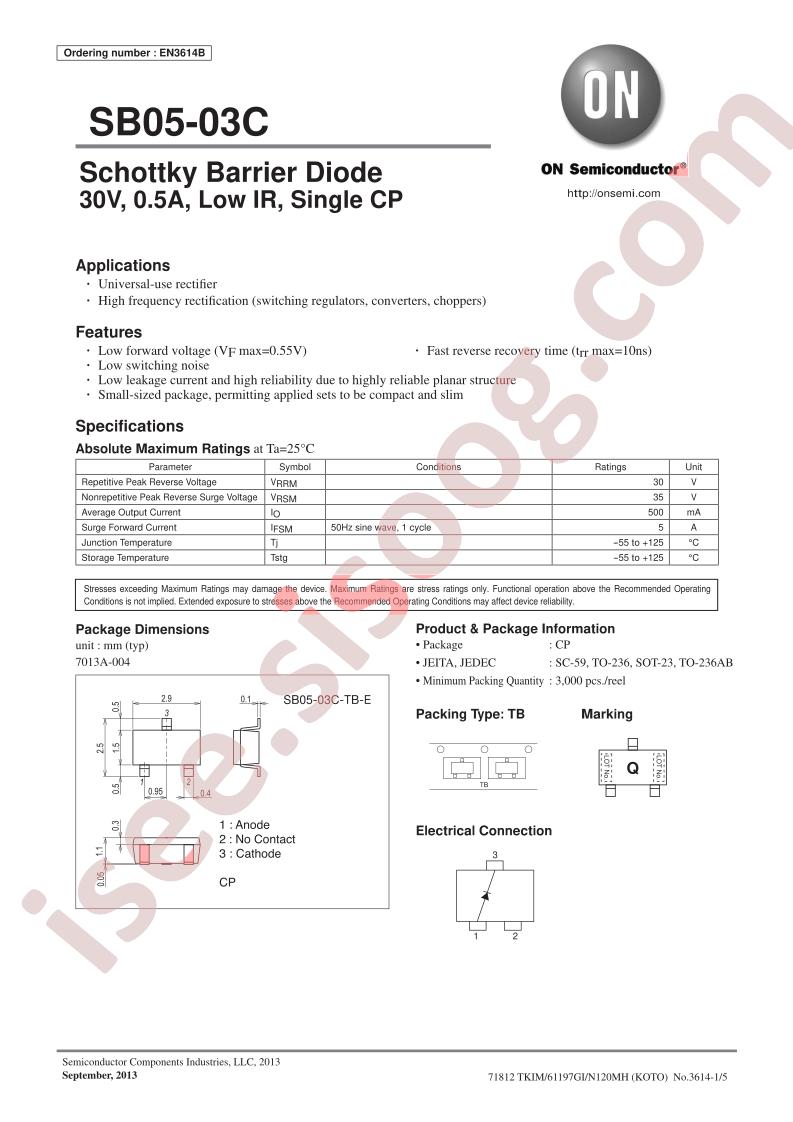

SB05-03C Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io): 500mA
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 500mA
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 10ns
  • Current - Reverse Leakage @ Vr: 30µA @ 15V
  • Capacitance @ Vr, F: 16pF @ 10V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: 3-CP
  • Operating Temperature - Junction: -55°C ~ 125°C
  • Base Part Number: SB05
  • detail: Diode Schottky 30V 500mA Surface Mount 3-CP
