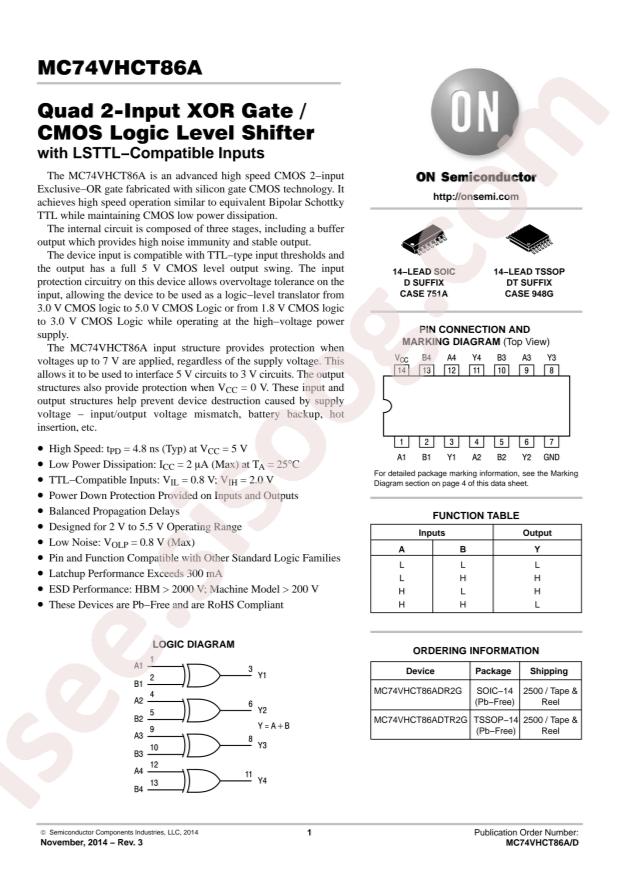

MC74VHCT86ADR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MC74VHCT86ADR2G
|
|
حجم فایل
|
97.28
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Series:
74VHCT
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi MC74VHCT86ADR2G
-
Sink Current:
8mA
-
Source Current:
8mA
-
Supply Voltage:
2V~5.5V
-
Logic Gate Type:
XORGate
-
Number of Channels:
4
-
Low Level Range (VIL):
0.53V~0.8V
-
Operating Temperature:
-55°C~+85°C
-
High Level Range (VIH):
1.2V~2V
-
Propagation Delay Time:
8.8ns@5V,50pF
-
Quiescent Current (Max):
2uA
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Logic Type:
XOR (Exclusive OR)
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
2V ~ 5.5V
-
Current - Quiescent (Max):
2µA
-
Current - Output High, Low:
8mA, 8mA
-
Logic Level - Low:
0.53V ~ 0.8V
-
Logic Level - High:
1.2V ~ 2V
-
Max Propagation Delay @ V, Max CL:
8.8ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MC74VHCT86
-
detail:
XOR (Exclusive OR) IC 4 Channel 14-SOIC
