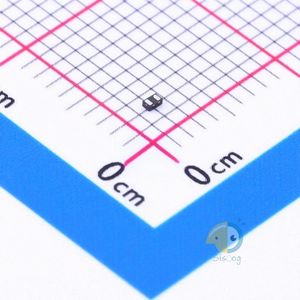

- دیتاشیت SZESD7451N2T5G
SZESD7451N2T5G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SZESD7451N2T5G |
|---|---|
| حجم فایل | 78.649 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت SZESD7451N2T5G |
دانلود دیتاشیت |
|---|
سایر مستندات
ESD7451, SZESD7451 5 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS
- Datasheet: onsemi SZESD7451N2T5G
- Breakdown Voltage: 6V@Typ
- Maximum Clamping Voltage: -
- Reverse Stand-Off Voltage (Vrwm): 3.3V@Max
- Peak Pulse Current (Ipp)@10/1000us: -
- Peak Pulse Power Dissipation (Ppp)@10/1000us: -
- Package: X-DFN-2
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Type: Zener
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3.3V (Max)
- Voltage - Breakdown (Min): 6V (Typ)
- Voltage - Clamping (Max) @ Ipp: -
- Current - Peak Pulse (10/1000µs): -
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: Automotive, RF Antenna
- Capacitance @ Frequency: 0.25pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 2-XDFN
- Supplier Device Package: 2-XDFN (1x0.6) (SOD-882)
- Base Part Number: ESD74
- detail: Clamp Ipp Tvs Diode Surface Mount 2-XDFN (1x0.6) (SOD-882)
