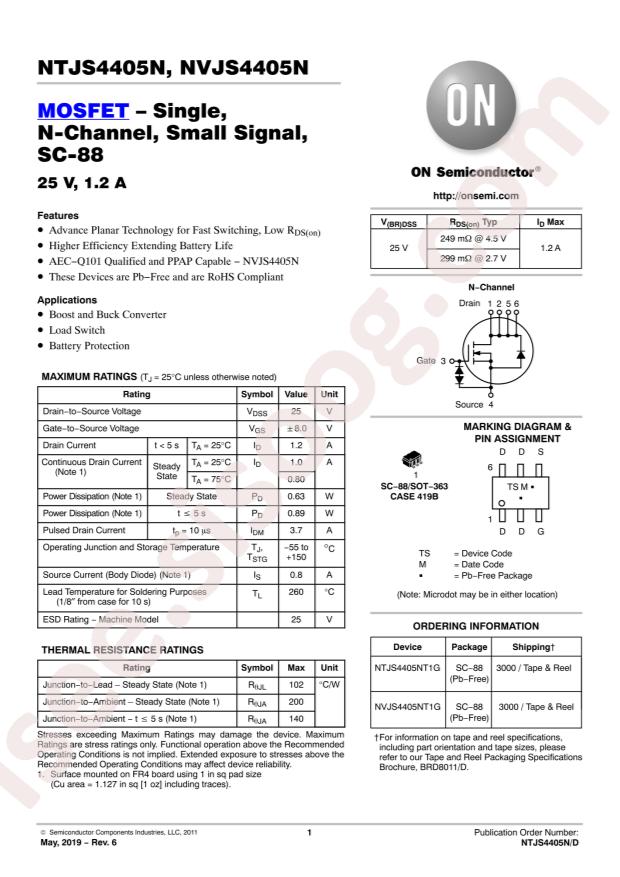

NTJS4405NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTJS4405NT1G
|
|
حجم فایل
|
94.588
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTJS4405NT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
630mW
-
Total Gate Charge (Qg@Vgs):
1.5nC@4.5V
-
Drain Source Voltage (Vdss):
25V
-
Input Capacitance (Ciss@Vds):
60pF@10V
-
Continuous Drain Current (Id):
1A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
350mΩ@600mA,4.5V
-
Package:
SC-88-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
25V
-
Current - Continuous Drain (Id) @ 25°C:
1A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.7V, 4.5V
-
Rds On (Max) @ Id, Vgs:
350mOhm @ 600mA, 4.5V
-
Vgs(th) (Max) @ Id:
1.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
1.5nC @ 4.5V
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
60pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
630mW (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88/SC70-6/SOT-363
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Base Part Number:
NTJS44
-
detail:
N-Channel 25V 1A (Ta) 630mW (Ta) Surface Mount SC-88/SC70-6/SOT-363
