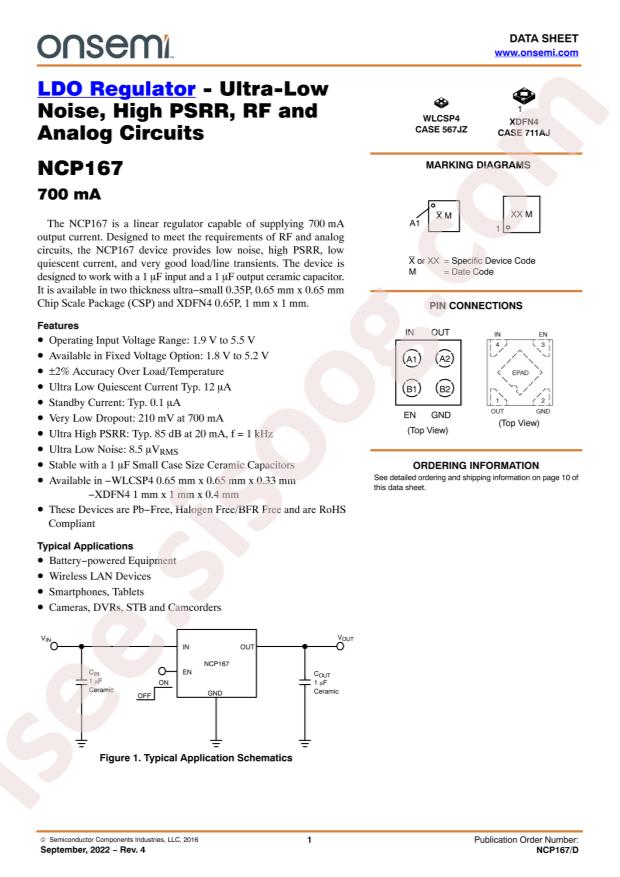

NCP167AFCT330T2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP167AFCT330T2G
|
|
حجم فایل
|
75.509
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP167AFCT330T2G
-
Output Current:
700mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
0.29V@(700mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
18uA
-
Package:
WLCSP-4
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.29V @ 700mA
-
Current - Output:
700mA
-
Current - Quiescent (Iq):
18µA
-
PSRR:
83dB ~ 63dB (100Hz ~ 100kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
4-XFBGA, WLCSP
-
Supplier Device Package:
4-WLCSP (0.64x0.64)
-
Base Part Number:
NCP167
-
detail:
Linear Voltage Regulator IC 1 Output 700mA 4-WLCSP (0.64x0.64)
