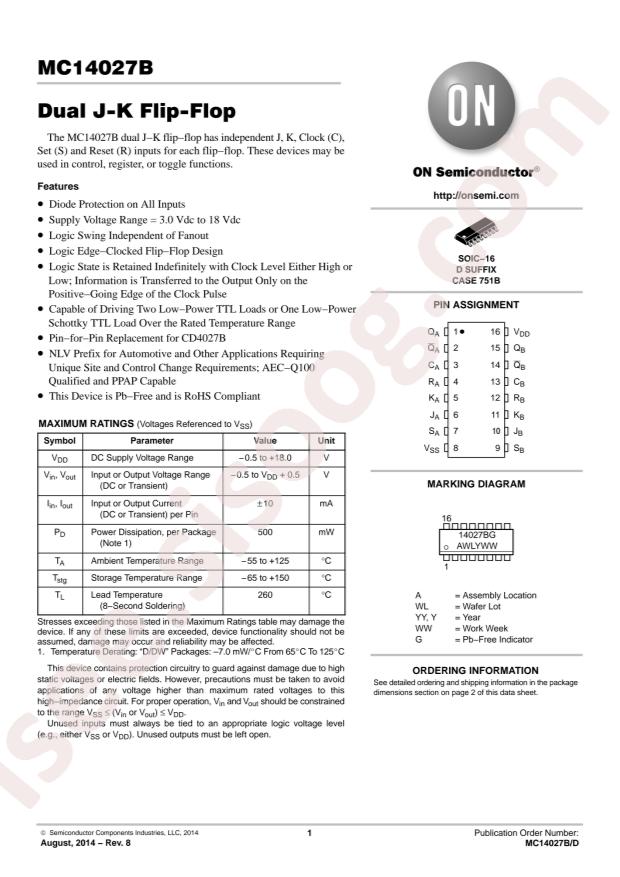

MC14027BDR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MC14027BDR2G
|
|
حجم فایل
|
85.502
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
JK-Type
-
Series:
4000B
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
onsemi MC14027BDR2G
-
Output Type:
互补型
-
Sink Current:
8.8mA
-
Trigger Type:
上升沿
-
Source Current:
8.8mA
-
Supply Voltage:
3V~18V
-
Clock Frequency:
13MHz
-
Input Capacitance:
5pF
-
Number of Elements:
2
-
Operating Temperature:
-55°C~+125°C
-
Quiescent Current (Iq):
4uA
-
Maximum Propagation Delay:
100ns@15V,50pF
-
Number of Bits per Element:
1
-
Package:
SOP-16
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Max Propagation Delay @ V, Max CL:
100ns @ 15V, 50pF
-
Current - Output High, Low:
8.8mA, 8.8mA
-
Voltage - Supply:
3V ~ 18V
-
Current - Quiescent (Iq):
4µA
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
16-SOIC
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MC14027
-
detail:
Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-SOIC (0.154", 3.90mm Width)
