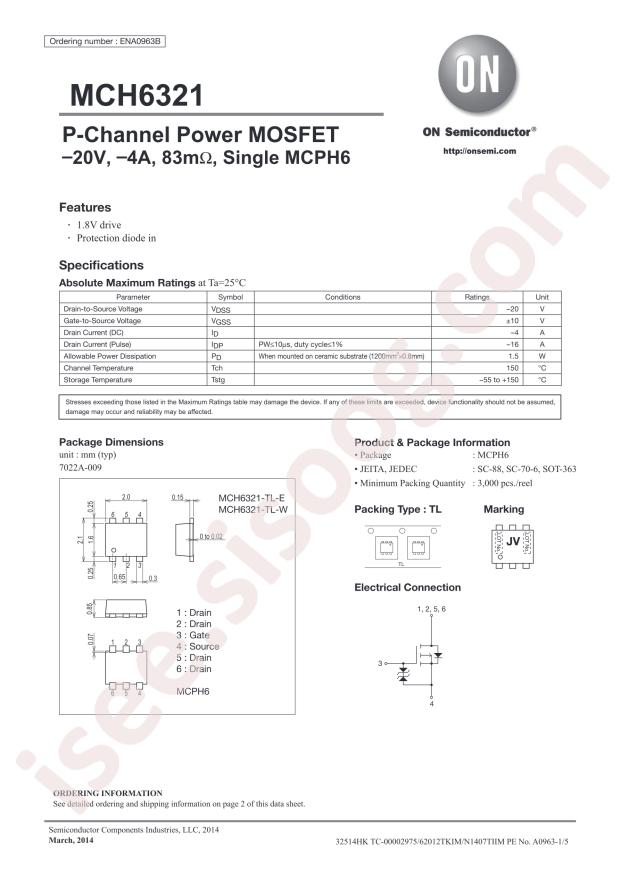

MCH6321-TL-E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MCH6321-TL-E
|
|
حجم فایل
|
60.05
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi MCH6321-TL-E
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
1.5W
-
Total Gate Charge (Qg@Vgs):
4.6nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
375pF@10V
-
Continuous Drain Current (Id):
4A
-
Gate Threshold Voltage (Vgs(th)@Id):
-
-
Reverse Transfer Capacitance (Crss@Vds):
58pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
63mΩ@4.5V,2A
-
Package:
MCPH-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
4A (Ta)
-
Rds On (Max) @ Id, Vgs:
83mOhm @ 2A, 4.5V
-
Vgs(th) (Max) @ Id:
-
-
Gate Charge (Qg) (Max) @ Vgs:
4.6nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
375pF @ 10V
-
FET Feature:
-
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
6-MCPH
-
Package / Case:
6-SMD, Flat Leads
-
Base Part Number:
MCH63
-
detail:
P-Channel 20V 4A (Ta) Surface Mount 6-MCPH
