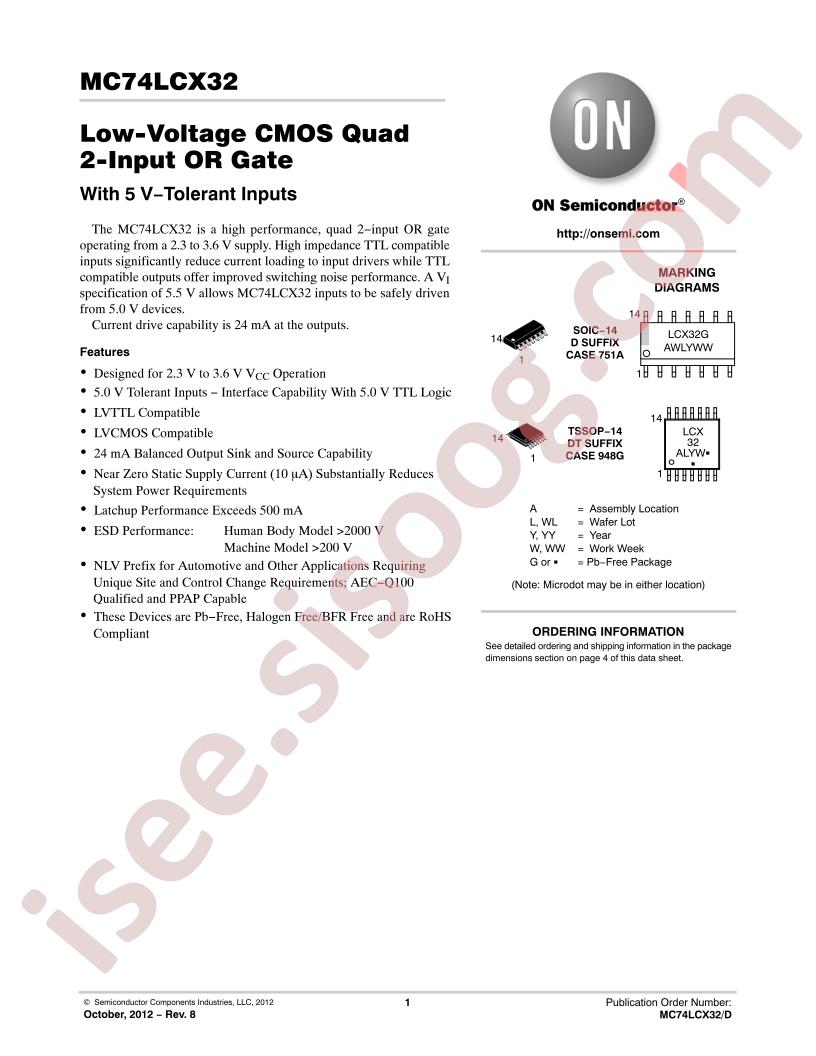

دیتاشیت MC74LCX32DTR2G
مشخصات دیتاشیت
| نام دیتاشیت |
MC74LCX32
|
| حجم فایل |
154.466
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Series:
74LCX
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi MC74LCX32DTR2G
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
2V~3.6V
-
Logic Gate Type:
ORGate
-
Number of Channels:
4
-
Low Level Range (VIL):
0.7V~0.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
1.7V~2V
-
Propagation Delay Time:
5.5ns@3.3V,50pF
-
Quiescent Current (Max):
10uA
-
Package:
TSSOP-14
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Logic Type:
OR Gate
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
2V ~ 3.6V
-
Current - Quiescent (Max):
10µA
-
Current - Output High, Low:
24mA, 24mA
-
Logic Level - Low:
0.7V ~ 0.8V
-
Logic Level - High:
1.7V ~ 2V
-
Max Propagation Delay @ V, Max CL:
5.5ns @ 3.3V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-TSSOP
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Base Part Number:
MC74LCX32
-
detail:
OR Gate IC 4 Channel 14-TSSOP
