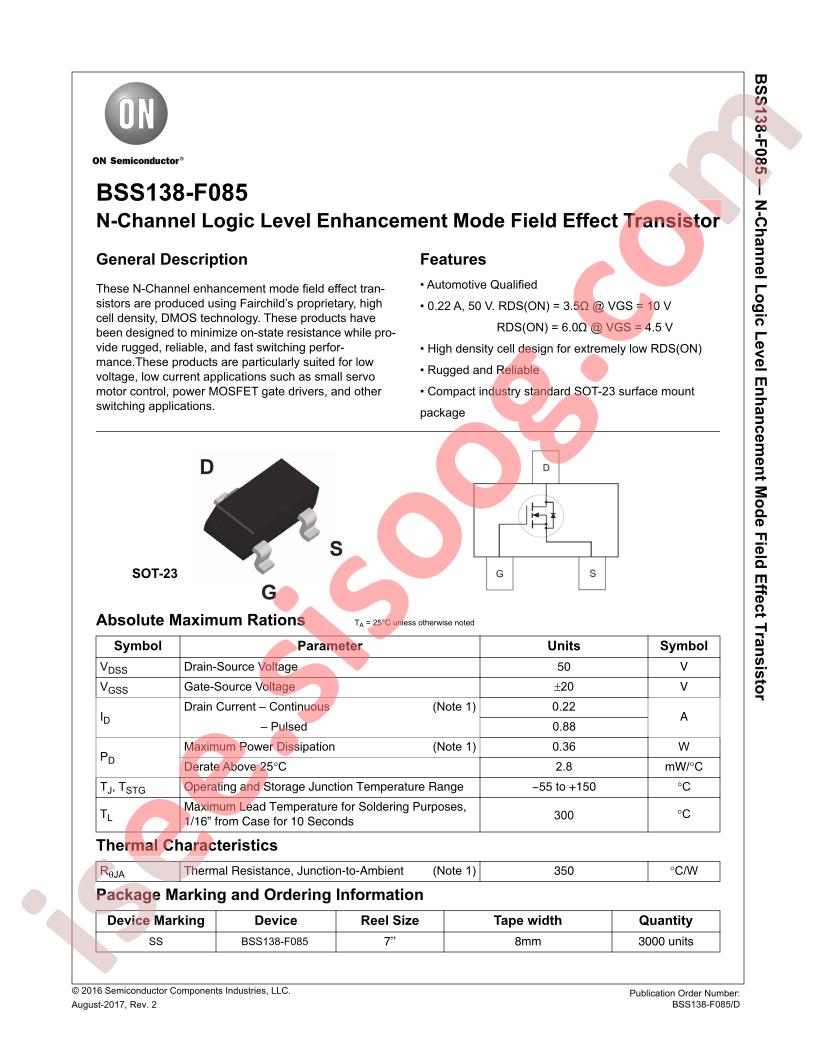

دیتاشیت BSS138-F085
مشخصات دیتاشیت
| نام دیتاشیت |
BSS138_F085
|
| حجم فایل |
3686.499
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
50V
-
Current - Continuous Drain (Id) @ 25°C:
220mA (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
3.5Ohm @ 220mA, 10V
-
Vgs(th) (Max) @ Id:
1.5V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
2.4nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
27pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
360mW (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Base Part Number:
BSS138
-
detail:
N-Channel 50V 220mA (Ta) 360mW (Ta) Surface Mount SOT-23
