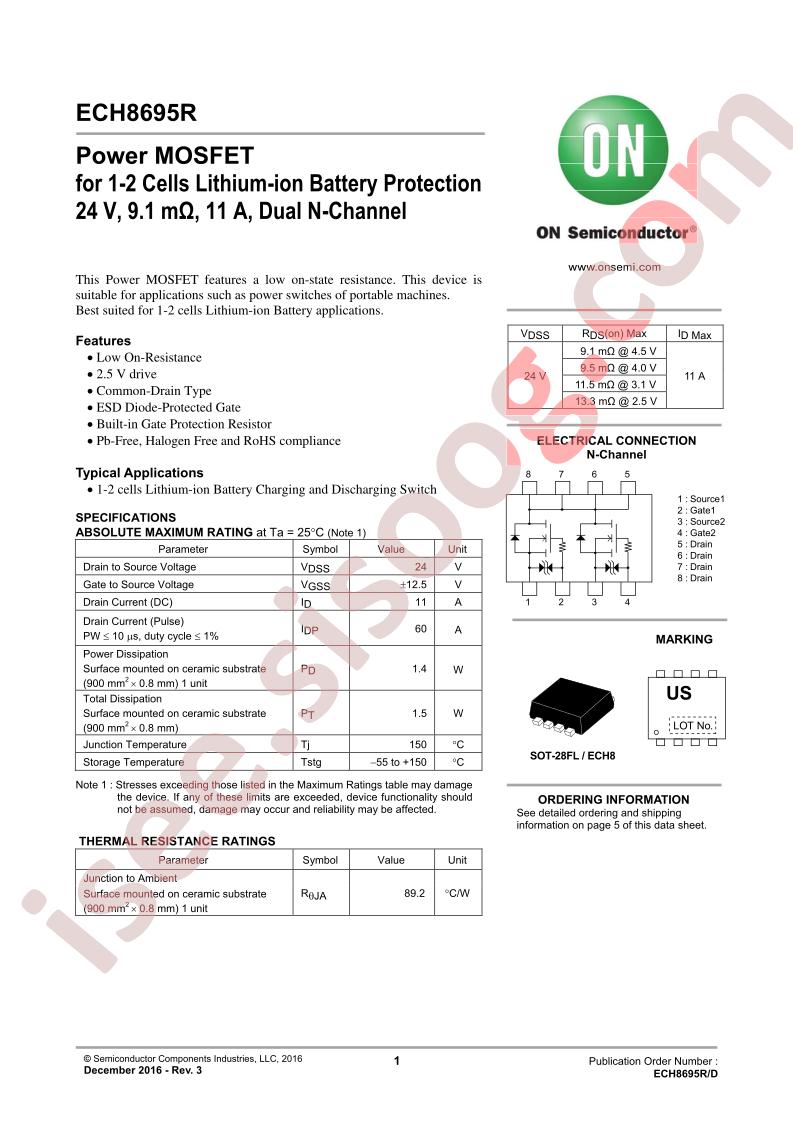

دیتاشیت ECH8695R-TL-W
مشخصات دیتاشیت
| نام دیتاشیت |
ECH8695R
|
| حجم فایل |
318.434
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
2PCSNChannel(Common Drain)
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi ECH8695R-TL-W
-
Power Dissipation (Pd):
1.4W
-
Total Gate Charge (Qg@Vgs):
10nC@4.5V
-
Drain Source Voltage (Vdss):
24V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.3V@1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.1mΩ@5A,4.5V
-
Package:
SOT-28FL
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual) Common Drain
-
FET Feature:
Logic Level Gate, 2.5V Drive
-
Drain to Source Voltage (Vdss):
24V
-
Current - Continuous Drain (Id) @ 25°C:
11A
-
Rds On (Max) @ Id, Vgs:
9.1mOhm @ 5A, 4.5V
-
Vgs(th) (Max) @ Id:
1.3V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
10nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
-
-
Power - Max:
1.4W
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SMD, Flat Lead
-
Supplier Device Package:
SOT-28FL/ECH8
-
Base Part Number:
ECH8695
-
detail:
Mosfet Array 2 N-Channel (Dual) Common Drain 24V 11A 1.4W Surface Mount SOT-28FL/ECH8
