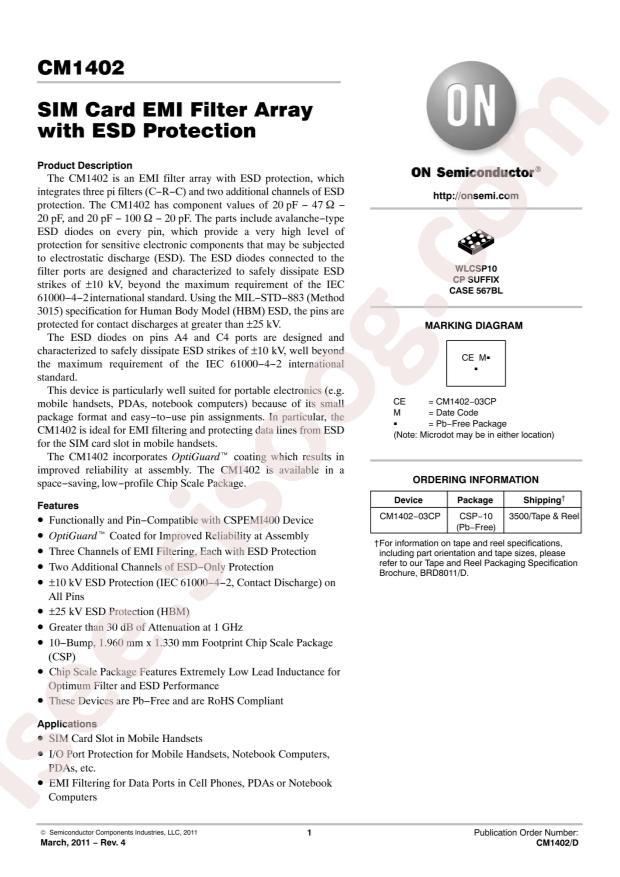

دیتاشیت CM1402-03CP
مشخصات دیتاشیت
| نام دیتاشیت |
CM1402
|
| حجم فایل |
418.489
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Low Pass
-
Filter Order:
2nd
-
Technology:
RC (Pi)
-
Number of Channels:
3
-
Center / Cutoff Frequency:
77MHz, 85MHz (Cutoff)
-
Attenuation Value:
30dB @ 1GHz
-
Resistance - Channel (Ohms):
47, 100
-
Values:
R = 47Ohms, 100Ohms, C = 20pF
-
ESD Protection:
Yes
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
Data Lines for Mobile Devices
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
10-WFBGA, WLCSP
-
Size / Dimension:
0.077" L x 0.052" W (1.96mm x 1.33mm)
-
Height:
0.028" (0.72mm)
-
Base Part Number:
CM1402
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47Ohms, 100Ohms, C = 20pF 10-WFBGA, WLCSP
