MC14069UBDTR2G دیتاشیت

MC14069UBDTR2G

مشخصات دیتاشیت

نام دیتاشیت MC14069UBDTR2G
حجم فایل 92.84 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

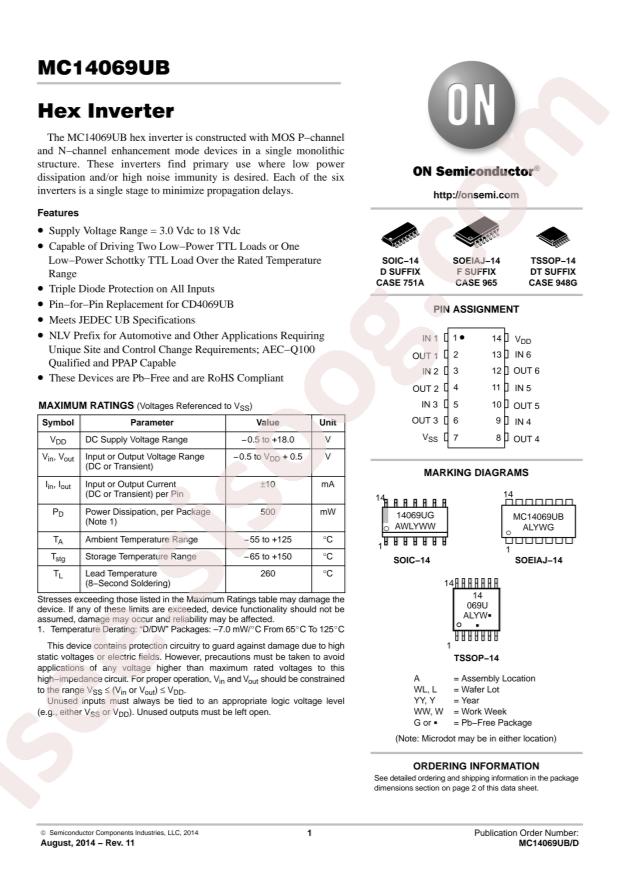

مشاهده دیتاشیت MC14069UBDTR2G

دانلود دیتاشیت

سایر مستندات

MC14069UB 6 pages

مشخصات فنی

  • RoHS: true
  • Series: 4000B
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi MC14069UBDTR2G
  • Input Type: -
  • Sink Current: 8.8mA
  • Source Current: 8.8mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 1uA
  • Low level range (VIL): 1V~2.5V
  • Max Propagation Delay: 55ns@15V,50pF
  • Operating Temperature: -55°C~+125°C
  • High level range (VIH): 4V~12.5V
  • Supply Voltage(Single): 3V~18V
  • Package: TSSOP-14
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: Inverter
  • Features: -
  • Voltage - Supply: 3V ~ 18V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 8.8mA, 8.8mA
  • Logic Level - Low: 1V ~ 2.5V
  • Logic Level - High: 4V ~ 12.5V
  • Max Propagation Delay @ V, Max CL: 55ns @ 15V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-TSSOP
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Base Part Number: MC14069
  • detail: Inverter IC 6 Channel 14-TSSOP
