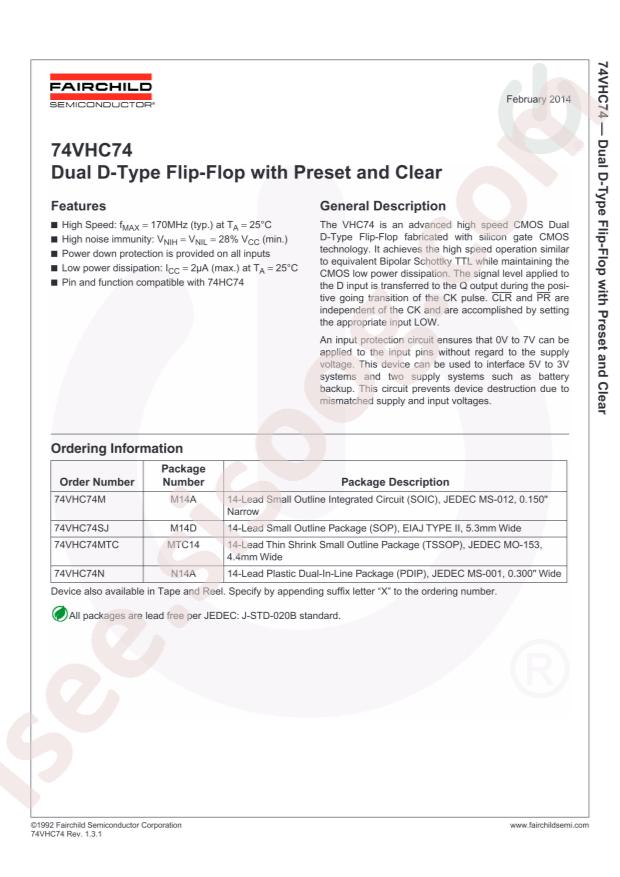

74VHC74MX دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
74VHC74MX
|
|
حجم فایل
|
70.025
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74VHC
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
onsemi 74VHC74MX
-
Output Type:
互补型
-
Sink Current:
8mA
-
Trigger Type:
上升沿
-
Source Current:
8mA
-
Supply Voltage:
2V~5.5V
-
Clock Frequency:
115MHz
-
Input Capacitance:
4pF
-
Number of Elements:
2
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
2uA
-
Maximum Propagation Delay:
9.3ns@5V,50pF
-
Number of Bits per Element:
1
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Max Propagation Delay @ V, Max CL:
9.3ns @ 5V, 50pF
-
Current - Output High, Low:
8mA, 8mA
-
Voltage - Supply:
2V ~ 5.5V
-
Current - Quiescent (Iq):
2µA
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
74VHC74
-
detail:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-SOIC (0.154", 3.90mm Width)
