دیتاشیت NCV8177AMTW110TCG-A642

NCV8177

مشخصات دیتاشیت

نام دیتاشیت NCV8177
حجم فایل 625.094 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت NCV8177

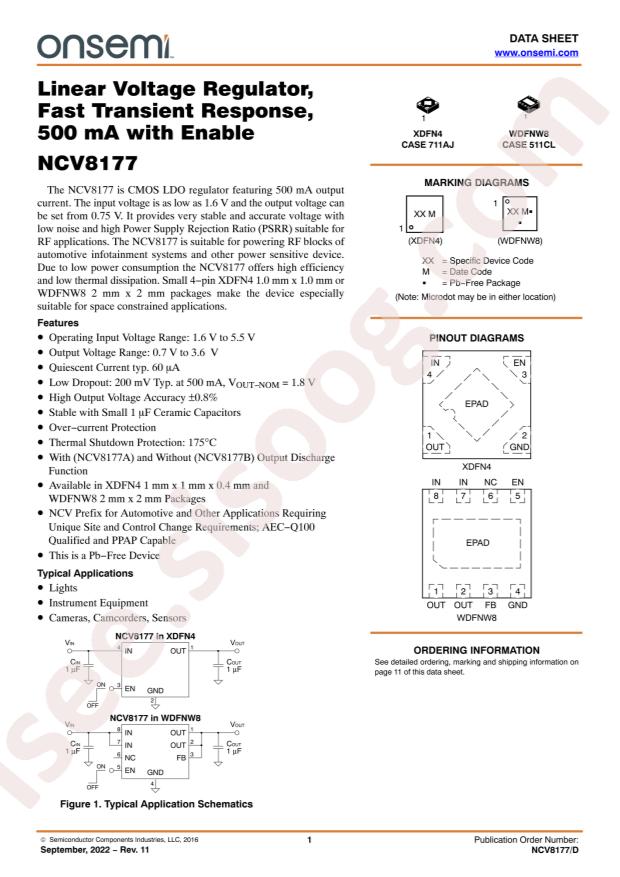

NCV8177 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCV8177AMTW110TCG-A642
  • Package: WFDFN-8-EP(2x2)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.1V
  • Current - Output: 500mA
  • Current - Quiescent (Iq): 90µA
  • PSRR: 75dB (1kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount, Wettable Flank
  • Package / Case: 8-WFDFN Exposed Pad
  • Supplier Device Package: 8-WDFNW (2x2)
  • Base Part Number: NCV8177
  • detail: Linear Voltage Regulator IC 1 Output 500mA 8-WDFNW (2x2)
