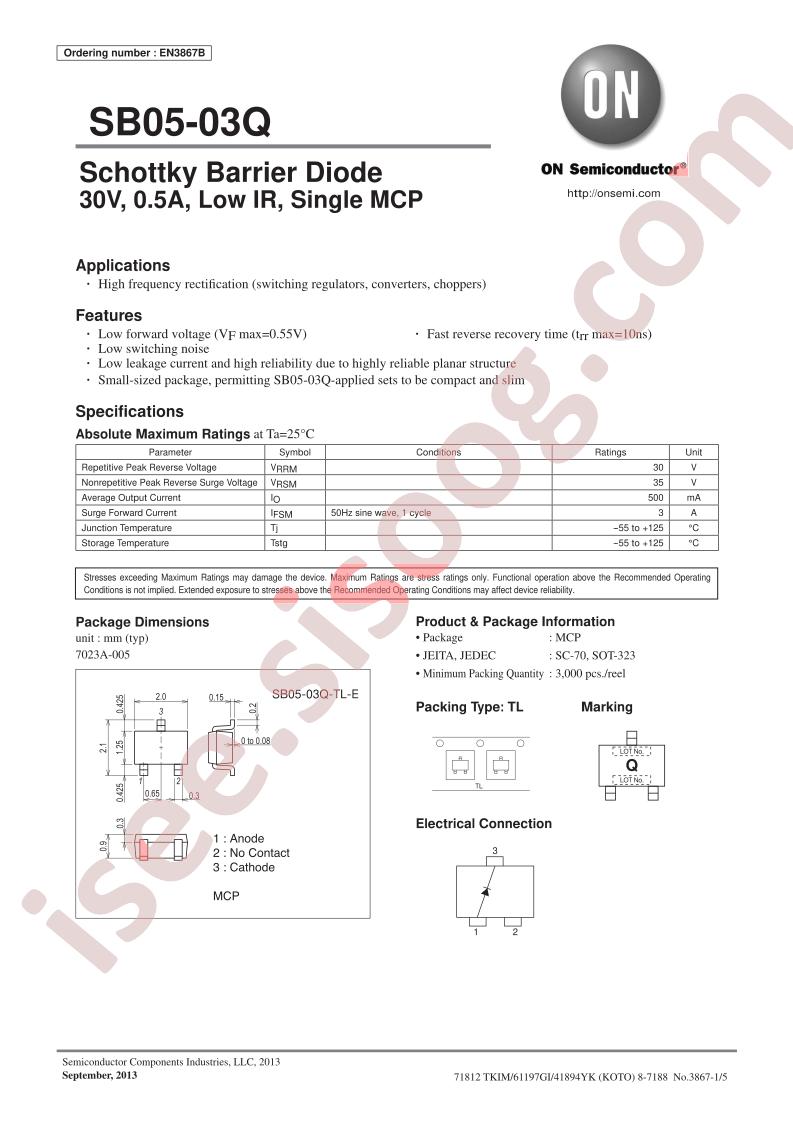

SB05-03Q-TL-E 数据手册
其他文档
SB05-03Q 5 pages
技术规格
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi SB05-03Q-TL-E
- Package: SOT-323(SC-70)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30V
- Current - Average Rectified (Io): 500mA
- Voltage - Forward (Vf) (Max) @ If: 550mV @ 500mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10ns
- Current - Reverse Leakage @ Vr: 30µA @ 15V
- Capacitance @ Vr, F: 16pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: 3-MCP
- Operating Temperature - Junction: -55°C ~ 125°C
- Base Part Number: SB05
- detail: Diode Schottky 30V 500mA Surface Mount 3-MCP
