MC14585BDR2G دیتاشیت

MC14585BDR2G

مشخصات دیتاشیت

نام دیتاشیت MC14585BDR2G
حجم فایل 106.947 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

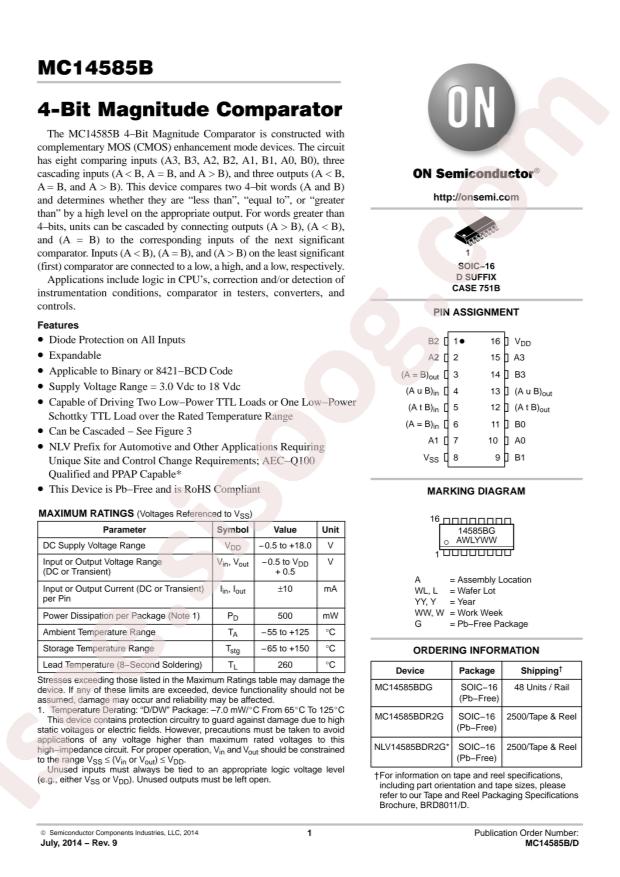

مشاهده دیتاشیت MC14585BDR2G

دانلود دیتاشیت

سایر مستندات

MC14585B 6 pages

مشخصات فنی

  • RoHS: true
  • Output: Active High
  • Category: Logic ICs/Digital Comparators
  • Datasheet: onsemi MC14585BDR2G
  • Sink Current: 4.2mA
  • Source Current: 4.2mA
  • Supply Voltage: 3V~18V
  • Output Function: AB
  • Quiescent Current: 20uA
  • Number of Channels: 4
  • Operating Temperature: -55°C~+125°C
  • Maximum Propagation Delay: 260ns@15V,50pF
  • Package: SOP-16
  • Manufacturer: onsemi
  • Series: 4000B
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Magnitude Comparator
  • Number of Bits: 4
  • Voltage - Supply: 3V ~ 18V
  • Current - Output High, Low: 4.2mA, 4.2mA
  • Max Propagation Delay @ V, Max CL: 260ns @ 15V, 50pF
  • Current - Quiescent (Iq): 20µA
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: MC14585
  • detail: Magnitude Comparator Bit Active High Output AB 16-SOIC
