دیتاشیت MC74HCT244ADTR2G

مشخصات دیتاشیت

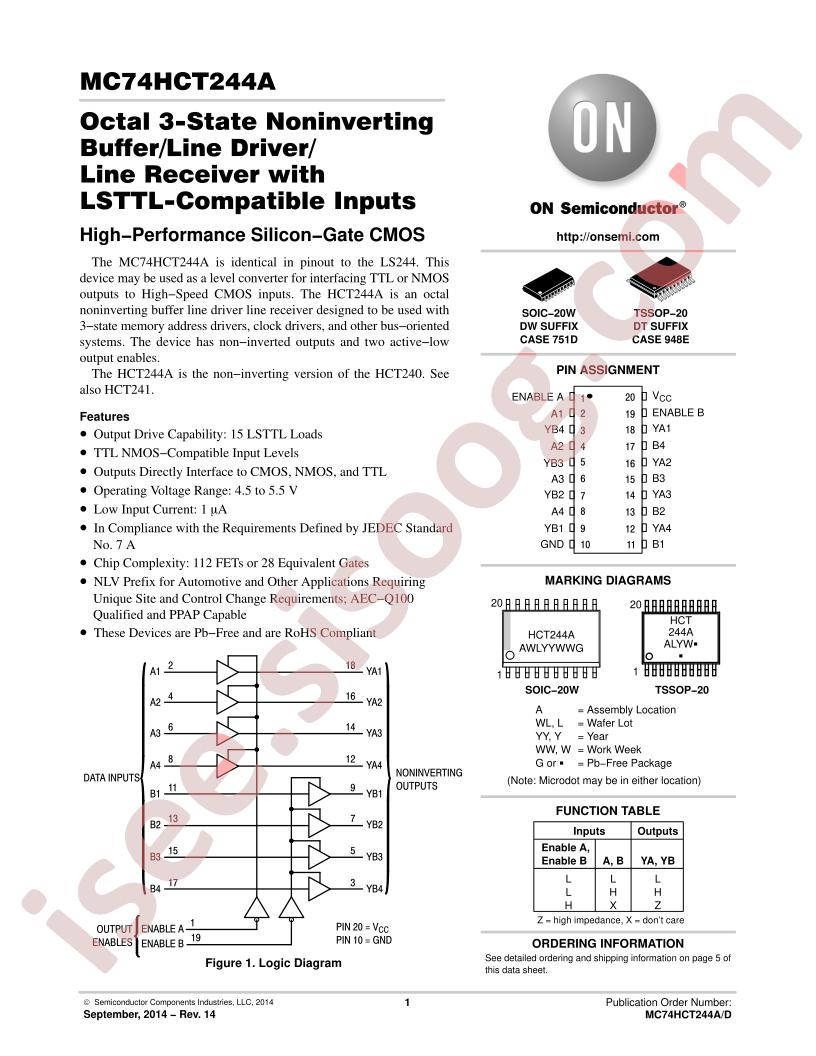

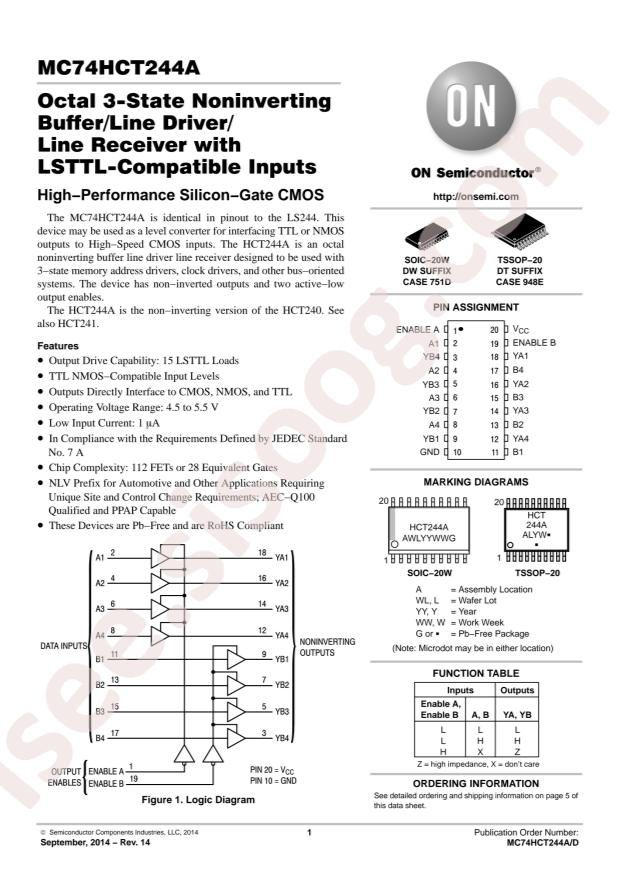

دانلود دیتاشیت MC74HCT244A	MC74HCT244A Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: onsemi MC74HCT244ADTR2G
output type: Tri-State
Logic Family: 74HCT
Sink Current: 6mA
Source Current: 6mA
Supply Voltage: 4.5V~5.5V
Number of Elements: 2
Operating Temperature: -55°C~+125°C
Number of Bits per Element: 4
Package: TSSOP-20
Manufacturer: onsemi
Series: 74HCT
Packaging: Cut Tape (CT)
Part Status: Obsolete
Logic Type: Buffer, Non-Inverting
Input Type: -
Current - Output High, Low: 6mA, 6mA
Voltage - Supply: 4.5V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 20-TSSOP
Base Part Number: MC74HCT244
detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
