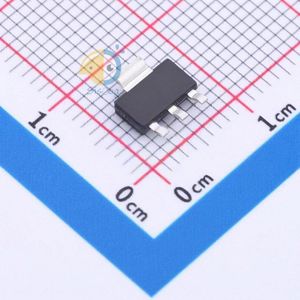

SPZT2222AT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SPZT2222AT1G
|
|
حجم فایل
|
95.809
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:

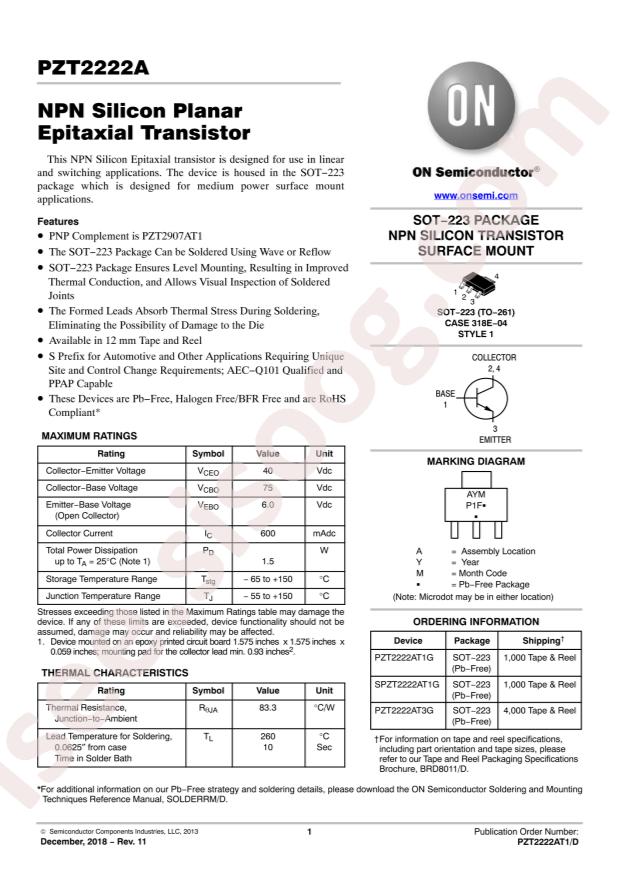

onsemi SPZT2222AT1G
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
600mA
-
Power Dissipation (Pd):
1.5W
-
Transition Frequency (fT):
300MHz
-
DC Current Gain (hFE@Ic,Vce):
100@150mA,10V
-
Collector Cut-Off Current (Icbo):
10nA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1V@50mA,500mA
-
Package:
SOT-223-4
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
1A
-
Voltage - Collector Emitter Breakdown (Max):
40V
-
Vce Saturation (Max) @ Ib, Ic:
1V @ 50mA, 500mA
-
Current - Collector Cutoff (Max):
10nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 150mA, 10V
-
Power - Max:
1W
-
Frequency - Transition:
300MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-261-4, TO-261AA
-
Supplier Device Package:
SOT-223-4
-
Base Part Number:
PZT222
-
detail:
Bipolar (BJT) Transistor NPN 40V 1A 300MHz 1W Surface Mount SOT-223-4
