دیتاشیت LM2931, NCV2931 Series

LM2931, NCV2931 Series

مشخصات دیتاشیت

نام دیتاشیت LM2931, NCV2931 Series
حجم فایل 565.711 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

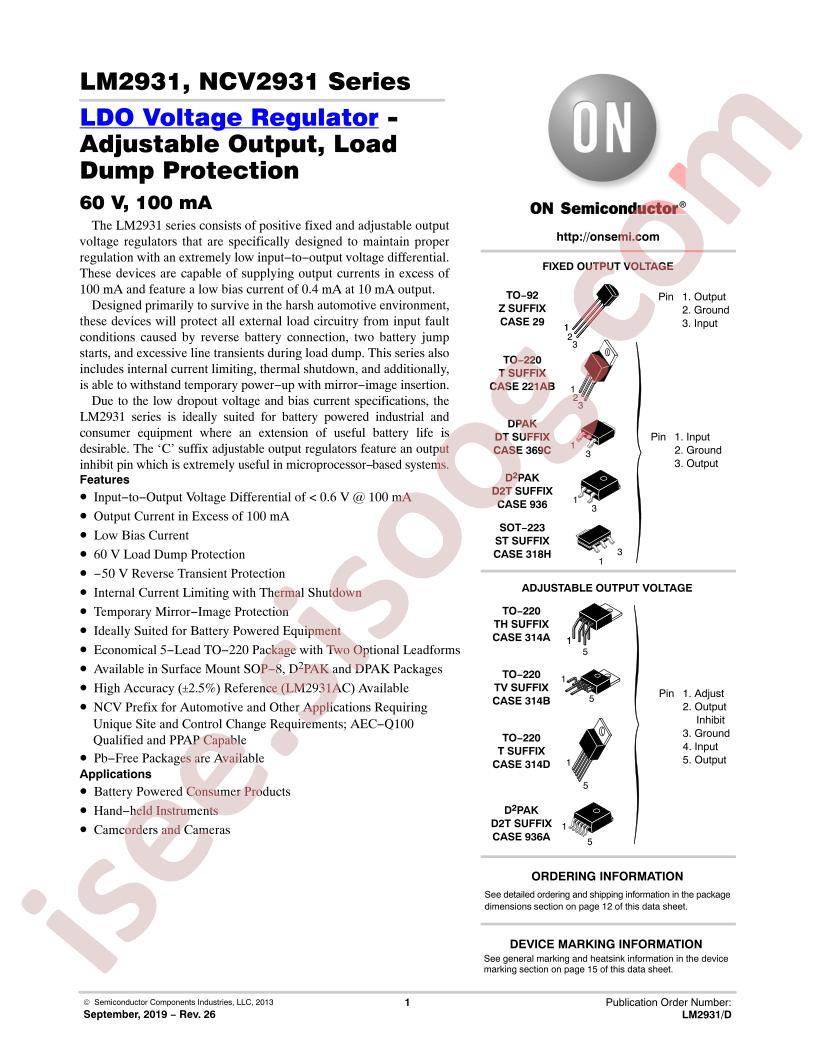

LM2931, NCV2931 Series

دانلود دیتاشیت

سایر مستندات

LM2931AT-5.0G 28 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi LM2931ADT-5.0RKG
  • Output Current: 100mA
  • Output Voltage: 5V
  • Dropout Voltage: 0.6V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 26V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 1mA
  • Power Supply Rejection Ratio (PSRR): 90dB@(120Hz)
  • Package: TO-252
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 40V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.6V @ 100mA
  • Current - Output: 100mA
  • PSRR: 90dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: LM2931
  • detail: Linear Voltage Regulator IC 1 Output 100mA DPAK
